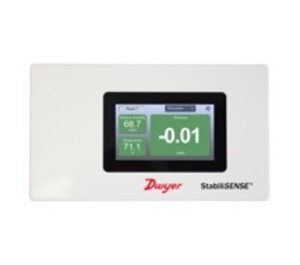

RSMC-B-014 | Dwyer Instruments | Pressure Components
ROOM PRESS MON, +/- .5% ACCURACY, -0.5 TO 0.5 IN W.C PRESSURE RANGE
Brand:Dwyer Instruments
MPN:RSMC-B-014
SKU:RSMC-B-014
List Price:
$2,005.00
Today's Price:
$1,042.60
Log in for customized pricingproduct specifications
Media Compatibility
Air
Range
±1 in WC
Type
Multi
Accuracy
0.5%
product series specifications
Service: Air
Measurement Technology: Capacitance cell pressure sensor
Wetted Materials: Front: PMMA window with IP65 rating; Back housing: Fire-proof ABS+PC UL 94 V-0
Pressure Limits: 1.5 psig
Accuracy: ±0.25% RSS (includes non-linearity: ±0.24% BFSL, hysteresis: ±0.05% and non-repeatability: ±0.05%), or ±0.5% RSS (includes non-linearity: ±0.49% BFSL, hysteresis: ±0.05% and non-repeatability: ±0.05%)
Process Connection: Barbed, fits 1/8" and 3/16" (3 mm and 5 mm) ID rubber or vinyl tubing
Inputs: Two (2) user-selectable 4-20 mA, 0-5 VDC, or 0-10 VDC; USB type C used for cloning programming; One (1) digital input for door status
Outputs: One (1) digital output (DO) rated 5 A @ 30 VDC; One (1) 4-20 mA or 0-10 V (user selectable) corresponding to internal pressure or retransmission of any input
Ambient Temperature Limits: 32 to 122°F (0 to 50°C)
Power Requirements: 24 VAC/VDC
Selectable Pressure Units: Pa, kPa, cm w.c., mm w.c., and in w.c.
Temperature Units: °F and °C
Zero and Span Adjustments: Adjustable via touchscreen
Power Consumption: 3.6 W @ 24 VDC
Electrical Connection: Removable terminal block
Display: 4.3" (10.9 cm) color TFT LCD, dimmable; 480 x 272 resolution
Communications: Modbus® RTU, BACnet MS/TP
Audible Alarm: 69.1 dB 10 cm from display
Weight: 1.05 lb (0.476 kg)
Approvals: BTL, CE
Warranty: 1 Year
product series features
- Long-term stable pressure measurements
- User-configurable graphical interface
- Monitors up to 3 rooms with a single unit
- Displays up to 4 parameters including pressure, relative humidity, temperature, air change, and/or door status
- Allows for flush installation in walls with space constraints with the shallow mounting depth of 1.1 in (27.5 mm)
- Full color 4.3 in touchscreen LCD incorporates color status indication: green for good, yellow for warning, and red for alarm
- Easy-to-clean optional brushed stainless steel bezel
- BACnet MS/TP and Modbus® RTU communications
- Includes RSMC, junction box, factory calibration certificate, and USB-C/USB-A flash-drive
more information & related documents
Series Description
The Series RSMC StabiliSENSE™ Critical Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. It can be configured to monitor positive or negative pressure in clean rooms, hospital isolation rooms, school nurses offices, laboratories, and vivariums. The RSMC is a complete system with a touchscreen graphical user interface which enables access to pressure, humidity, temperature, air change, security, door status, calibration, and alarm setup. The graphical display color changes allow a clear determination of when the parameters are operating within the acceptable range (green), caution range (yellow), or have gone outside the acceptable operating range (red). The RSMC StabiliSENSE™ critical room status monitor comes standard with BACnet MS/TP and Modbus® RTU communications.
Kele Description
ROOM PRESS MON, +/- .5% ACCURACY, -0.5 TO 0.5 IN W.C PRESSURE RANGE
Manufacturer
Dwyer Instruments
