A10-1000 | Wika Instrument Corporation | Pressure Components

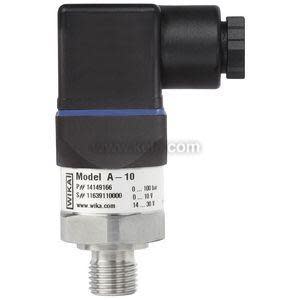

A-10 1000 psi, 4-20 mA, 1/4 NPT, 6 ft. Cable
Brand:Wika Instrument Corporation
MPN:A10-1000
SKU:A10-1000
List Price:
$565.00
Today's Price:
$293.80
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
PSI
Media Compatibility
Liquid,Gas
Range
±10,000 psi
Type
Transmitter
Accuracy
1%
Output
4 - 20 mA
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 8-30 VDC
Accuracy: ±1% FS
Signal Output: 4-20 mA @ 600Ω
Thermal Effect: < 1% of span, typical
Overpressure: 2x pressure range
Burst Pressure: 5x pressure range
Response Time: < 4 ms
Wetted Materials: 316L SS
Compensated Temperature Range: 32° to 176°F (0° to 80°C)
Operating Temperature: 32° to 176°F (0° to 80°C)
Process Connection: ¼ NPT
Wiring Terminations: 7/8″ cable
Weight: 0.18 lb (0.08 Kg)
Warranty: 2 years
product series features
- Pressure ranges from 0 to 10,000 psi
- Applications in process control and automation
- Electrical connections with a 6 ft cable, other DIN style available
- Standard 1/4 in NPT connection, other styles available
- 3 point test report provided with each unit
more information & related documents
Series Description
The WIKA A-10 Series is a precision engineered pressure transmitter. Rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme enviornemntal conditions. Performance and relaibility is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability of the A-10. Primary applications include process control and automation, hydraulics, pneumatics and machine controls.
Kele Description
PRESS XMTR, +/-1.00%, 0-1000 PSI, 4-20 MA
Manufacturer
Wika Instrument Corporation
Related Documents
A-10 Data Sheet
