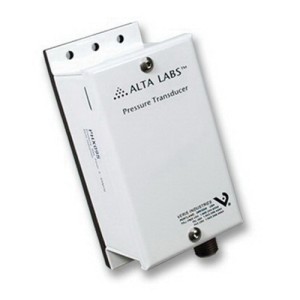

PHX08S | Veris | Pressure Components
1% ACCURACY DIGITALLY CONTROLLED GAUGE CONTROLLED PRESSURE TRANSDUCER 0 TO 250 PSIG
Brand:Veris
MPN:PHX08S
SKU:PHX08S
List Price:
$318.24
Today's Price:
$165.48
Log in for customized pricingproduct specifications
Media Compatibility
Liquid,Gas
Range
0 - 250 psi
Type
Adjustable
Accuracy
1%
Output
4 - 20 mA
Supply Voltage (Nominal)
24 VDC
product series specifications
Input: class 2; 12 to 30 Vdc/24 Vac
Output: 3-wire transmitter; user selectable 4 to 20 mA (clipped & capped)/0-5 V/0-10 V*
Surge Damping: Electronic; 5-second averaging
Housing Material: White powder-coated steel
Accuracy: ±1% F.S. Combined linearity, hysteresis, and repeatability
Media Compatibility: Media compatible with 17-4 PH stainless steel
Fittings: 1/4" NPT male thread, 17-4 PH stainless
product series features
- Reduces Failures
- High stability
- Zero calibration
- Switch-selectable
- Pushbutton
- Microprocessor
more information & related documents
Series Description
The PH Series pressure transducers are designed for steam, air, gas, and liquid pressure measurement in all media compatible with 17-4PH N8 stainless steel. They utilize a microprocessor controlled sensor profiled for exceptional accuracy and reliability. All models feature three switchselectable ranges and a “test mode” to verify wiring and panel input scaling. A pushbutton and digital input terminal is used to automatically zero the output, and the microprocessor guards against accidental zero adjustment during operation. The field-selectable output, offering options of 0 to 5 V, 0 to 10 Vdc, or 4 to 20 mA, ensures excellent systems compatibility.
Kele Description
1% ACCURACY DIGITALLY CONTROLLED GAUGE CONTROLLED PRESSURE TRANSDUCER 0 TO 250 PSIG
Manufacturer
Veris
Related Documents
Veris_PH_Datasheet
