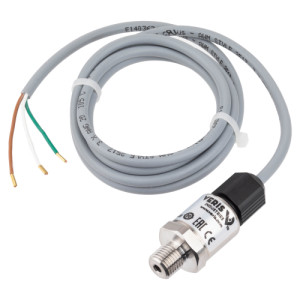

PG07AV | Veris | Pressure Components
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
Brand:Veris
MPN:PG07AV
SKU:PG07AV
List Price:
$674.00
Today's Price:
$350.48
Log in for customized pricingproduct specifications
Media Compatibility
Gas,Liquid
Range
0 - 100 psi
Type
Adjustable
Accuracy
0.005
Output
0 - 10 VDC
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: Class2; 12 to 30 VDC
Output: 0 to 5 VDC (3-wire), 0 to 10 VDC (3-wire) or 4 to 20 mA (2-wire)
Standard Connection: Cable gland 59in (1.5 m) length
Pressure Port: 1/4in NPT Male
Accuracy: ±0.5% FS
Media Compatibility: Fluids & gases compatible with 316L stainless steel
Rating: IP66
Operating Temp. Range: -30 to 120C (-22 to 130F)
Compensated Temp Range: 0 to 55C (32 to 130F)
Humidity: 0 to 95% RH non-condensing
product series features
- A wide operating temperature range of -40 to 85 °C (-40 to 185 °F) for operation versatility
- Suitable for high shock and vibration applications
- No silicon oil, no internal O-rings, no welds
- Stainless steel wetted construction
more information & related documents
Series Description
The PG Series pressure transducers are compatible with a variety of HVAC and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet, and outlet fluid pressure. They are also compatible with extreme applications, such as aerospace and motor sports equipment. Volt and mA output options ensure integration with building systems. A wide selection of pressure ranges offers application flexibility.
Kele Description
PRESSURE GAUGE 100 PSIG 0-10 VDC
Manufacturer
Veris
Related Documents
PG Series Datasheet
