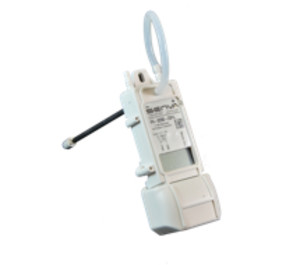

* product series image displayed

P4-0500-DU1XP | Senva | Pressure Components

DRY MEDIA PRESS XMTR5'' FIXED 3-WIRE 4-20MA UNI-DIR 1% NO DISP DUCT PROBE

Brand:Senva

MPN:P4-0500-DU1XP

SKU:P4-0500-DU1XP

List Price:

$261.00

Today's Price:

$135.72

Lead time of > 15 days. Chat with Kele experts now

product specifications

Media Compatibility

Liquid,Gas

Range

±5 in WC

Type

Zone

Accuracy

Output

4 - 20 mA

Made in USA

Made In USA

Approvals

CE, ROHS

Supply Voltage (Nominal)

24 VDC

product series specifications

Power supply: 12-30VDC/24VAC(1), 30mA max

Output types available: 4-20mA loop powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC

Multiple fixed ranges available: 0.1" w.c. up to 25" w.c. models; 1250 Pa up to 6250 Pa models

Operating temperature range: -4 to 185°F (-20 to 85°C)

Compensated range: 32 to 122°F (0 to 50°C)

Media compatibility: Dry, oil-free air, N2

Sensor type: MEMS silicon piezoresistive; precision calibrated

Sensor performance - Accuracy (1%): ±0.25% BFSL (Best fit straight line @ 70°F); ±1.0% of selected range (total error band); Non-position sensitive

Zero Drift (1 year): 1% max

Auto-zero input: Push-button and contact closure

Warranty: 7 year limited warranty

product series features

Time and space saving installation for field and OEM applications
0-5VDC/10VDC or 4-20 mA loop powered output options
Address duct, filter, and remote probe mounting with a single unit with RP-6 probe addition
Remote probe mounting accepts both 1/4 in and 3/8 in ID hose
Non-position sensitive for easy placement
DIN mount - forward for LCD panel applications
Side DIN mount to maximize panel space
Conduit cover for 3/8 in flex connectors

more information & related documents

Series Description

The P4 dry media pressure transmitter features fixed ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Innovative static probe integrates with unit or can be mounted remotely for static pressure

Kele Description

DRY MEDIA PRESS XMTR5'' FIXED 3-WIRE 4-20MA UNI-DIR 1% NO DISP DUCT PROBE

Manufacturer

Senva
