PR-265-R2-MA

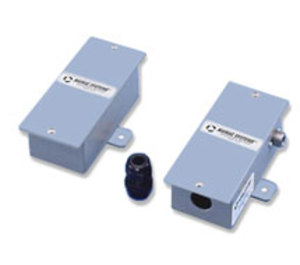

* product family image displayed

PR-265-R2-MA | MAMAC Systems | Pressure

PRESS XMTR, +/-1.00%, +/-15 PSIG, 4-20 MA

Manufacturer:MAMAC Systems

MPN:PR-265-R2-MA

SKU:PR-265-R2-MA

List Price:

504.17

Today's Price:

282.34



USD
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

12-40 VDC; 12-35 VAC (VDC output units only)

Supply Current

VDC units: 10 mA max; mA units: 20 mA max.

Signal Output

4-20 mA 2-wire, 0-5 VDC or 0-10 VDC field selectable

Accuracy

±1% full scale

Overpressure

300%

Burst Pressure

500%

Operating Humidity

10 to 90% RH, non-condensing

Wiring Terminations

Unpluggable screw terminal block

Compensated Temperature Range

0° to 180℉ (-18° to 82℃)

Enclosure

18 gauge C.R. steel NEMA-4 (IP-65)

Media Compatibility

Liquid/gases compatible to 316L stainless steel

Port Connections

1/8″ NPT

Pressure Range

0-30″ Hg, ±15 Hg

Temperature Effect

±0.025%/℉ (.03%/℃)

Wire Size

12 gauge max.

Approvals

CE, RoHS

Weight

1.0 lb (0.45 kg)

Warranty

5 years

product family features

  • 100% solid state fused silicon pressure sensor
  • NIST traceable calibration
  • Rugged NEMA 4 (IP-65) enclosure with external mouting bracket

more information & related documents

Family Description

The MAMAC Systems PR-265 Series Suction Pressure Transmitter utilizes a 316L stainless steel monolithic pressure cavity to provide a highly accurate, stable means of measuring gauge pressures. The MAMAC PR-265 Series works with liquids and gases.

Kele Description

PRESS XMTR, +/-1.00%, +/-15 PSIG, 4-20 MA

Manufacturer

MAMAC Systems
