PTX1E-LCD-09 | Kele | Pressure Components

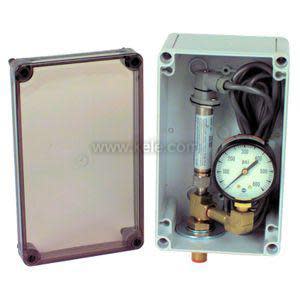

Pressure Transmitter Enclosed (Not Watertight), With LCD, Brass Fittings, 0-200 psig (0-1379 Pa)
Brand:Kele
MPN:PTX1E-LCD-09
SKU:PTX1E-LCD-09
List Price:
$994.83
Today's Price:
$517.31
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
PSIG,Pascals
Media Compatibility
Liquid,Gas
Range
±500 psi
Type
Transmitter
Accuracy
1%
Output
4 - 20 mA
Display
LCD
Made in USA
Made In USA
Enclosure Rating
NEMA 4
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 10 to 36 VDC @ 22 mA max
Accuracy: ±1% Full Scale
Signal Output (Current): 4-20 mA @ 636 Ω (loop powered)
Sensor Type: Polysilicon resistive
Display: (optional) 2″ Dial gauge or 0.5″ Digital with 3.5 digits
Overpressure: (Burst) 200% of rated pressure
Max Operating Pressure: (Proof) 800% of rated pressure
Operating Temperature: -40° to 200℉ (-40° to 93℃)
Compensated Temp. Range: -20° to 160℉ (-29° to 71℃)
Operating Humidity: 0 to 95% Non-condensing
Wetted Parts: Brass, 17-4 SS
Media Compatibility: H2O, Glycol, Steam, Refrigerant, Air
Process Connection: Direct-1/8″ MNPT, Encl. bulkhead- 1/8″ FNPT
Wiring Terminations: 2-24 AWG pigtail in 72″ (182 cm) cable
Mounting: By process connection or optional enclosure
Enclosure Rating: 304 SS, NEMA 4, (Optional) Enclosure NEMA 4
Dimensions: 5.11″H x 5.11″W x 2.95″D, (13.0 x 13.0 x 7.5 cm)
Weight: 0.45 lb (0.2 Kg), with Enclosure 2.1 lb (0.93 Kg)
Warranty: 1 year
product series features
- For steam, water, glycol, ammonia, refrigerants, and more
- 1% full scale accuracy
- 200% proof pressure
- Wide range of pressures
- 4-20 mA output
- Reverse polarity protected
- Plug-in, splash-proof connector with 6' cable
- Stainless steel wetted parts
- Stainless steel case
- Optional watertight polystyrene enclosure
- Optional LCD/red digital indication
- Optional gauge available for mediums compatible with brass
more information & related documents
Series Description
The Kele PTX1 Series Stainless Steel Pressure Transmitter utilizes a thin film strain-gauge bridge and stainless steel diaphragm to provide a highly accurate, stable means of measuring gauge pressures up to 2000 psig (13.79 MPa). Splash-proof cable connections protect the wiring, allowing the PTX1 Series to be mounted near the medium being measured. Optional indication is available as a digital display or as a 2 in (5.1 cm) gauge.
Kele Description
ENCLOSED PSI XDUCER 0-200# LCD
Manufacturer
Kele
