PTX1E-G-16

PTX1E-G-16 | Kele | Pressure

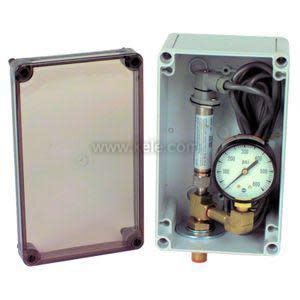

Pressure Transmitter in Watertight Enclosure, with Gauge, Brass Fittings, 30'' Hg Vacuum to 60 psig (-101.6 Vacuum to 413.7 Pa)

Brand:Kele

MPN:PTX1E-G-16

SKU:PTX1E-G-16

List Price:

$894.00

Today's Price:

$464.88



Availability: Usually Ships in Less Than 1 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accuracy

±1.00%

Direction

Bi-Directional

Housing Rating

NEMA 4

Measurement

PSIG, Pascals

Media Compatibility

Liquid/Gas

Output

4-20 mA

Range

±50 in WC

Supply Voltage

10-36 VDC

Type

Transmitter

Made in USA

Made In USA

product series specifications

Supply Voltage: 10 to 36 VDC @ 22 mA max

Accuracy: ±1% Full Scale

Signal Output (Current): 4-20 mA @ 636 O (loop powered)

Sensor Type: Polysilicon resistive

Display: (optional) 2? Dial gauge or 0.5? Digital with 3.5 digits

Overpressure: (Burst) 200% of rated pressure

Max Operating Pressure: (Proof) 800% of rated pressure

Operating Temperature: -40° to 200? (-40° to 93?)

Compensated Temp. Range: -20° to 160? (-29° to 71?)

Operating Humidity: 0 to 95% Non-condensing

Wetted Parts: Brass, 17-4 SS

Media Compatibility: H2O, Glycol, Steam, Refrigerant, Air

Process Connection: Direct-1/8? MNPT, Encl. bulkhead- 1/8? FNPT

Wiring Terminations: 2-24 AWG pigtail in 72? (182 cm) cable

Mounting: By process connection or optional enclosure

Enclosure Rating: 304 SS, NEMA 4, (Optional) Enclosure NEMA 4

Dimensions: 5.11?H x 5.11?W x 2.95?D, (13.0 x 13.0 x 7.5 cm)

Weight: 0.45 lb (0.2 Kg), with Enclosure 2.1 lb (0.93 Kg)

Warranty: 1 year

product series features

  • For steam, water, glycol, ammonia, refrigerants, and more
  • 1% full scale accuracy
  • 200% proof pressure
  • Wide range of pressures
  • 4-20 mA output
  • Reverse polarity protected
  • Plug-in, splash-proof connector with 6' cable
  • Stainless steel wetted parts
  • Stainless steel case
  • Optional watertight polystyrene enclosure
  • Optional LCD/red digital indication
  • Optional gauge available for mediums compatible with brass

more information & related documents

Series Description

The Kele PTX1 Series Stainless Steel Pressure Transmitter utilizes a thin film strain-gauge bridge and stainless steel diaphragm to provide a highly accurate, stable means of measuring gauge pressures up to 2000 psig (13.79 MPa). Splash-proof cable connections protect the wiring, allowing the PTX1 Series to be mounted near the medium being measured. Optional indication is available as a digital display or as a 2 in (5.1 cm) gauge.

Kele Description

30INVAC/60#PSI ENCLOSED W/GAUGE
