PTX1-09 | Kele | Pressure

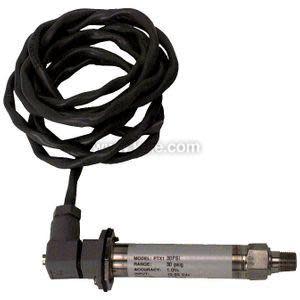

Pressure Transmitter with Cable, 0-200 psig (0-1379 Pa)
Brand:Kele
MPN:PTX1-09
SKU:PTX1-09
List Price:
$603.93
Today's Price:
$314.04
product specifications
Accuracy
±1.00%
Direction
Uni-Directional
Measurement
PSIG
Media Compatibility
Liquid/Gas
Output
4-20 mA
Range
±500 PSI
Supply Voltage
10-36 VDC
Type
Transmitter
Made in USA
Made In USA
product series specifications
- Supply Voltage:
- 10 to 36 VDC @ 22 mA max
- Accuracy:
- ±1% Full Scale
- Signal Output (Current):
- 4-20 mA @ 636Ω (loop powered)
- Sensor Type:
- Polysilicon resistive
- Display:
- (optional) 2‚Ä= Dial gauge or 0.5‚Ä= Digital w/3.5 digits
- Overpressure:
- (Burst) 200% of rated pressure
- Max Operating Pressure :
- (Proof) 800% of rated pressure
- Operating Temperature:
- -40° to 200‚Ñâ (-40° to 93‚ÑÉ)
- Compensated Temp. Range:
- -20° to 160‚Ñâ (-29° to 71‚ÑÉ)
- Operating Humidity:
- 0 to 95% Non-condensing
- Wetted Parts:
- Brass, 17-4 SS
- Media Compatibility:
- H2O, Glycol, Steam, Refrgerant, Air,
- Process Connection:
- Direct-1/8‚Ä= MNPT, Encl. bulkhead- 1/8‚Ä= FNPT
- Wiring Terminations:
- 2-24 AWG pigtail in 72‚Ä= (182 cm) cable
- Mounting:
- By process connection or optional enclosure
- Enclosure Rating:
- 304 SS, NEMA 4, (Optional) Enclosure NEMA 4
- Dimensions:
- Àú5.11‚Ä=H x 5.11‚Ä=W x 2.95‚Ä=D, (13.0 x 13.0 x 7.5 cm)
- Weight:
- 0.45 lb (0.2 Kg), with Enclosure 2.1 lb (0.93 Kg)
- Warranty:
- 1 year
product series features
- For steam, water, glycol, ammonia, refrigerants, and more
- 1% full scale accuracy
- 200% proof pressure
- Wide range of pressures
- 4-20 mA output
- Reverse polarity protected
- Plug-in, splash-proof connector with 6' cable
- Stainless steel wetted parts
- Stainless steel case
- Optional watertight polystyrene enclosure
- Optional LCD/red digital indication
- Optional gauge available for mediums compatible with brass
more information & related documents
Series Description
The Kele PTX1 Series Stainless Steel Pressure Transmitter utilizes a thin film strain-gauge bridge and stainless steel diaphragm to provide a highly accurate, stable means of measuring gauge pressures up to 2000 psig (13.79 MPa). Splash-proof cable connections protect the wiring, allowing the PTX1 Series to be mounted near the medium being measured. Optional indication is available as a digital display or as a 2 in (5.1 cm) gauge.
Kele Description
STAINLESS 0-200 PSI/4-20 MA
Manufacturer
Kele
