PSS2-200

PSS2-200 | Kele | Pressure

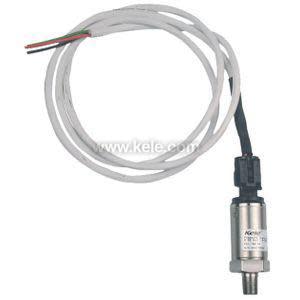

Stainless Steel 4-20 mA Pressure Transmitter, 0-200 psig (0-1379 Pa)

Brand:Kele

MPN:PSS2-200

SKU:PSS2-200

List Price:

$417.00

Today's Price:

$216.84



Availability: 113 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accuracy

±0.50%

Approvals

ROHS

Direction

Uni-Directional

Measurement

PSIG, Pascals

Media Compatibility

Liquid/Gas

Output

4-20 mA

Range

±500 PSI

Supply Voltage

8-30 VDC

Type

Transmitter

product series specifications

Supply Voltage:8 to 30VDC @ 25 mA max

Accuracy: ±0.5% of span

Pressure Range:± 1% of span for =50 psig

Signal Output (Current): 4-20 mA @ 800 O (loop powered)

Sensor Type: ASIC piezo-resistive and temp. Compensated

Display: (Optional) 2½ Dial gauge or 0.5? Digital with 3.5 digits

Overpressure: (Burst) 3x rated pressure

Max Operating Pressure: (Proof) 5x rated pressure

Operating Temperature: -40° to 221°F (-40° to 105°C)

Operating Humidity:10 to 90% Non-condensing

Wetted Parts: Brass, 304SS and 316SS

Media Compatibility: Liquid or Gas compatible w/Brass, 304SS and 316SS

Process Connection: Direct-1/8? MNPT, Encl. bulkhead- 1/8? FNPT

Wiring Terminations: 2-16 AWG pigtail in 36? (91cm) cable

Mounting: By process connection or optional enclosure

Enclosure Rating: (Optional) plastic enclosure, NEMA 4, (IP66)

Dimensions: 5.11?H x 5.11?W x 2.95?D, (13.0 x 13.0 x 7.5 cm)

Weight: 0.3 lb (0.13 Kg)

Warranty: 1 year

product series features

  • Splash-proof, plug-in electrical connector
  • For steam, water, glycol, refrigerant, and more
  • 4-20 mA output
  • 304L/316L stainless steel wetted parts
  • Wide range of pressures
  • High overpressure capability

more information & related documents

Series Description

The Kele PSS2 Series Stainless Steel Pressure Transmitter is highly accurate and compact, which makes it ideal for HVAC, building automation, and process gauge pressure applications. A splash-proof Packard-type electrical connector is provided for ease of installation. Eleven standard ranges are available for a wide variety of applications.

Kele Description

STAINLESS TRANS 0-200 PSI
