STG77S-E1G000-1-A-AHA-11SA10A0 | Honeywell | Pressure Components

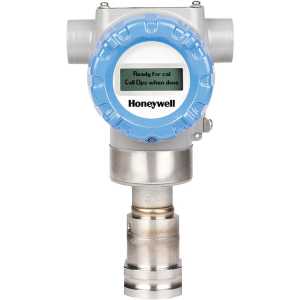

STG77S Gauge Pressure Transmitter, Inline, -14.7 to 3000 PSI Range Limits. Reference Accuracy 0.065% of Span, 100:1 Max. Turndown Ratio. 316 SS Head, 316L SS Diaphragm, Silicone Oil 200 Fill, 1/2" NPTF Process Connection. Standard Head Orientation: High Side Left, Low Side Right. FM Explosion-Proof, Intrinsically Safe, Non-Incendive, Dustproof. Aluminum Housing, 1/2" NPT Connection, 4-20 mA DC Output, HART Protocol, External Zero and Span Buttons. Standard Diagnostics, Fail High (3.8 to 20.8 mA DC Output Limits). Carbon Steel Angle Bracket. Factory Standard Configuration, Factory Standard Single Calibration.

Brand:Honeywell

MPN:STG77S-E1G000-1-A-AHA-11SA10A0

SKU:STG77S-E1G000-1-A-AHA-11SA10A0

List Price:

$7,025.65

Today's Price:

$3,653.34

product datasheet

installation instructions

Lead time of 15 days. Chat with Kele experts now

product series specifications

Hart: Yes

SIL-Rated: Yes

Measuring Range: 5 to 3,000PSI

product series features

Rangeability and turndown of up to 100:1
Response times as fast as 100 ms
Reference accuracies to 0.05% or 0.065% span standard
Transmitter stability up to 0.02% span per year for 5 years
Built-in automatic static pressure and temperature compensation
External zero, span, and configuration capabilities
Polarity-insensitive electrical connections
4-20 mA, Honeywell DE, HART v7 and Foundation Fieldbus communications options
Comprehensive onboard diagnostics
Full compliance to SIL2 and SIL3 requirements standard
Advanced graphic LCD: Eight configurable screens for process variables, bargraphs, and trends

more information & related documents

Series Description

Honeywell SmartLine STG700 pressure transmitters are designed to replace older ST3000 Series 900 transmitter models for vacuum, compound, or gauge pressure measurement applications. They can be used for high pressure measurements in boilers and fuel feeds to tank level measurement applications, even those with process temperatures up to 257°F, including reaction vessels in the petrochemical and hydrocarbon recovery industries.

Kele Description

GAUGE PRESS.XMTR,0-30/0-3000 PSI SPAN RANGE, 1/2"NPT PROCESS, 4-20MA OUT, HART, BRACKET

Manufacturer

Honeywell
