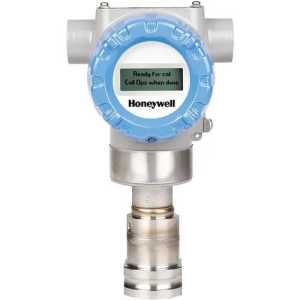

STG74L-E1G000-1-A-AHS-11SA10A0 | Honeywell | Pressure Components
INLINE GP XMTR 1/2"NPTF 5/500PSI SPANS FM XP/IS/NI HART,STND INDICATOR W/ BUTTONS, MTG BRKT
Brand:Honeywell
MPN:STG74L-E1G000-1-A-AHS-11SA10A0
SKU:STG74L-E1G000-1-A-AHS-11SA10A0
List Price:
$7,614.06
Today's Price:
$3,959.31
Log in for customized pricingproduct series specifications
Hart: Yes
SIL-Rated: Yes
Measuring Range: 5 to 3,000PSI
product series features
- Rangeability and turndown of up to 100:1
- Response times as fast as 100 ms
- Reference accuracies to 0.05% or 0.065% span standard
- Transmitter stability up to 0.02% span per year for 5 years
- Built-in automatic static pressure and temperature compensation
- External zero, span, and configuration capabilities
- Polarity-insensitive electrical connections
- 4-20 mA, Honeywell DE, HART v7 and Foundation Fieldbus communications options
- Comprehensive onboard diagnostics
- Full compliance to SIL2 and SIL3 requirements standard
- Advanced graphic LCD: Eight configurable screens for process variables, bargraphs, and trends
more information & related documents
Series Description
Honeywell SmartLine STG700 pressure transmitters are designed to replace older ST3000 Series 900 transmitter models for vacuum, compound, or gauge pressure measurement applications. They can be used for high pressure measurements in boilers and fuel feeds to tank level measurement applications, even those with process temperatures up to 257°F, including reaction vessels in the petrochemical and hydrocarbon recovery industries.
Kele Description
INLINE GP XMTR 1/2"NPTF 5/500PSI SPANS FM XP/IS/NI HART,STND INDICATOR W/ BUTTONS, MTG BRKT
Manufacturer
Honeywell
Related Documents
Honeywell SmartLine ST700 Smart Pressure Transmitters User Manual Honeywell Smartline Pressure Transmitters Brouchure Honeywell SmartLine Pressure Transmitters HART Safety Manual Honeywell SmartLine Pressure Transmitters Configuration Worksheet Honeywell SmartLine ST700 Foundation Fieldbus Communications User Manual Honeywell SmartLine Transmitters FDM Offline Configuration User Manual Honeywell STG700 Datasheet
