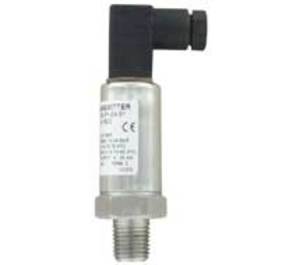

* product series image displayed

626-10-GH-P1-E3-S5 | Dwyer Instruments | Pressure Components

PRESSURE TRANSMITTER, 0.25%, 0-100 PSI, 0-10VDC

Brand:Dwyer Instruments

MPN:626-10-GH-P1-E3-S5

SKU:626-10-GH-P1-E3-S5

catalog page

This item has been discontinued and is no longer available for purchase.

Need assistance? Call 877.826.9045 or for replacement options.

Call 877.826.9045 or for pricing

product specifications

Media Compatibility

Liquid,Gas

Range

±100 psi

Type

Adjustable

Accuracy

0.25%

Output

4 - 20 mA

Enclosure Rating

NEMA 4X

Approvals

EMC, ROHS

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 10 to 30 VDC @ 38 mA max.

Accuracy: ±0.25% span FS (includes linearity, repeatability and Hysteresis)

Sensor Type: Piezoresistive

Normal Measurement Range: Vacuum to 8000 PSIG (See ordering)

Overpressure (Burst): 1000 to 12,000 PSIG (See ordering)

Max Operating Pressure (Proof): 400 to 10,000 PSIG (See ordering)

Operating Temperature: 0° to 200°C (-18° to 93°F)

Compensated Temperature Range: 0° to 175°C (-18° to 79°F)

Operating Humidity: 5 to 95% Non-condensing

Wetted Parts: 316L Stainless Steel

Media Compatibility: Liquid or Gas compatible w/316 SS

Process Connection: 1/4" male or female NPT or BSPT

Wiring Terminations: 2 wire pigtails with 3', 6', or 9' cable

OR: 2 terminals for M12 or DIN plug

Mounting: Mount in any position

Dimensions:

-GH: 3.2"L x 1" Dia (8.1 x 2.5 cm)

-CG: 5.5"L x 1.28"W x 3.5"D (13.9 x 3.25 x 8.9 cm)

Weight: 0.6 lb (0.3 Kg)

Approvals: CE, NSF, UL

Warranty: 1 year

product series features

Robust 316 SS oil filled sensor
Metal conduit housing option
Compact design

more information & related documents

Series Description

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

Kele Description

PRESSURE TRANSMITTER, 0.25%, 0-100 PSI, 0-10VDC

Manufacturer

Dwyer Instruments
