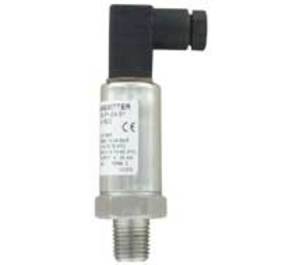

626-10-CB-P1-E5-S1 | Dwyer Instruments | Pressure

10 to 30 VDC @ 38 mA max.

±0.25% span FS (includes linearity, repeatability and Hysteresis)

±1.0% span FS (includes linearity, repeatability and Hysteresis)

Piezoresistive

Vacuum to 8000 PSIG (See ordering)

1000 to 12,000 PSIG (See ordering)

400 to 10,000 PSIG (See ordering)

0° to 200℉ (-18° to 93℃)

0° to 175℉ (-18° to 79℃)

5 to 95% Non-condensing

316L Stainless Steel

Liquid or Gas compatible w/316 SS

1/4″ male or female NPT or BSPT

2 wire pigtails w/3’, 6’ or 9’ cable

2 terminals for M12 or DIN plug

Mount in any position

NEMA 4X, IP66

3.2″L x 1″ Dia ∅, (8.1 x 2.5 cm)

5.5″L x 1.28″W x 3.5″D (13.9 x 3.25 x 8.9 cm)

0.6 lb (0.3 Kg)

CE, NSF, UL

1 year

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

INDUST PRESS XMTR 0-100 PSI 1/4IN MALE NPT 4-20MA
