GC51-50V#G | Ashcroft, Inc | Pressure Components

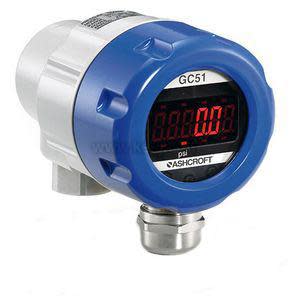

Ashcroft GC51 Rangeable Pressure Transmitter, Vacuum-50 psi, ±0.25%, LCD, NEMA 4X Enclosure
Brand:Ashcroft, Inc
MPN:GC51-50V#G
SKU:GC51-50V
List Price:
$3,110.76
Today's Price:
$1,617.59
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
PSI
Media Compatibility
Liquid,Gas
Range
±50 psi
Type
Fixed
Accuracy
0.25%
Output
4 - 20 mA
Display
LCD
Approvals
CE
Supply Voltage (Nominal)
24 VDC
Mount
Bracket
product series specifications
Supply Voltage: 12 to 32VDC @20mA max
Signal Output: (Volts,Current) 4-20mA loop
Max Current Output Impedance: 545Ω @24VDC
Accuracy: ±0.25% Full scale (includes linearity, repeatability and Hysteresis)
Sensor Type: Polysilicon resistive
Adjustments: (Z/S) Zero & Span trim POTs
Normal Measurement Range: Vacuum to 7500 PSIG (See ordering)
Display Option: Digital LCD w/red backlight, 0.39" high w/4 digits
Overpressure: (Burst) 500% of rated pressure <1500 PSIG
Max Operating Pressure: (Proof) 200% of rated pressure <1500 PSIG
Operating Temperature: 14 to 140°F (-10 to 60°C)
Compensated Temp. Range: 14 to 140°F (-10 to 60°C)
Operating Humidity: 0 to 95% Non-condensing
Wetted Parts: 316 and pH17-4 Stainless Steel
Media Compatibility: Liquid or Gas compatible w/316 & 17-4 SS
Process Connection: 1/4" FNPT
Wiring Terminations: 2-14-22 AWG w/ cable gland
Mounting: Mounting hat bracket, 4- 0.18" holes
Enclosure Rating: Aluminum NEMA 4 (IP65)
Dimensions: 3.55"H x 2.76"W x 4.1"D, (9 x 7 x 10.4 cm)
Weight: 1.lb (0.45kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- NEMA 4X (IP65) aluminum die cast housing
- Backlit LCD display
- Min./Max. hold to capture pressure events
- Rotatable display
- Adjustable pressure range and output
- 2 wire 4-20mA output
- Standard 120ms response time
- Internal push button keys with key lock feature
- Optional NIST certification
more information & related documents
Series Description
The Ashcroft GC51 Rangeable Pressure Transmitter is a compact alternative to the conventional process transmitter available in compound and gauge ranges. The ranges span from Vacuum to 15 PSI, 30 PSI, or 50 PSI compound ranges and 0 to 7500 PSI ranges. The GC51 Series features a two wire 4-20mA output, backlit LCD display, stainless steel wetted parts, and NEMA 4X, IP65, robust aluminum housing. The range and output allows for rescaling and setting of user defined units.
Kele Description
PRESS XMTR, +/-0.25%, VACUUM-50 PSI, 4-20 MA
Manufacturer
Ashcroft, Inc
Related Documents
GC51 Installation Instruction Manual
