PTP3-30G | ACI | Pressure Components
Pressure Input (3-30PSI) to Analog Output(4-20mA), Gauge (1-5V, 2-10V, 3-15V Selectable)
Brand:ACI
MPN:PTP3-30G
SKU:PTP3-30G
List Price:
$355.50
Today's Price:
$184.86
Log in for customized pricingproduct specifications
Range
3 to 30 psi
Type
Transducer
Accuracy
2%,3%
Output
4 - 20 mA
product series specifications
Supply Voltage: 24 VDC or 24 VAC, -6% / +10%
Supply Current: 50 mA maximum @ 24 VDC
Input Pressure Range: PTP 3-15: 3 to 15 psig, PTP 3-30: 3 to 30 psig
Output Analog Accuracy: 2% full scale at room temperature, 3% full scale across operating temperature range
Gauge Pressure Range (Gauge Models): 0-30 psig (0-200 kPa)
Gauge Pressure Accuracy (Gauge Models): ± 2.5% Midscale, ± 3.5% Full Scale
Operating Temperature Range: 35 to 120 °F (1.7 to 48.9 °C)
Operating Humidity Range: 10 to 95% non-condensing
Storage Temperature: -20 to 150 °F (-28.9 to 65.5 °C)
more information & related documents
Series Description

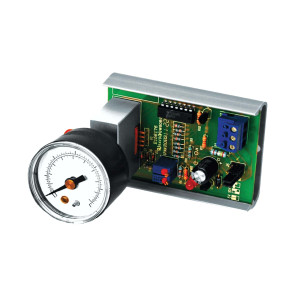

Two models of the PTP accept either a 3 to 15 or 3 to 30 psig pneumatic pressure input and convert it to one of four proportional analog output ranges of 1-5, 2-10, 3-15 VDC or 4-20 mA which are jumper shunt selectable. A plugged gauge port is provided in the aluminum manifold for local mechanical indication via an optional 0 to 30 psi gauge. Custom calibration is available upon request for an additional charge. This will speed up installation time for the end user.
Kele Description
PRESSURE INPUT (3-30PSI) TO ANALOG OUTPUT(4-20MA), GAUGE (1-5V, 2-10V, 3-15V SELECTABLE)
Manufacturer
ACI
Related Documents
ACI_PTP_Series_Datasheet
