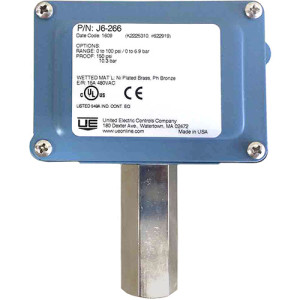

J6-266 | United Electric | Pressure Components
NEMA 4X PRESS SW, ADJ, 0 TO 100 PSI, SPDT
Brand:United Electric
MPN:J6-266
SKU:J6-266
List Price:
$571.15
Today's Price:
$297.00
Log in for customized pricingproduct specifications
Measurement
PSI
Connection Size
1/4 in
Connection
NPTF
Housing Material
Epoxy-Coated Diecast Aluminum Enclosure, Gasketed, Captive Cover Screws
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC Resistive
Repeatability
1%
Enclosure Rating
NEMA 4X
Process Variable
Pressure
Contact Type
SPDT
Measurement Range
0 - 100 PSI
Switch Rating
15A @ 125/250/480 VAC
Overrange Pressure
100 PSI
Proof Pressure
150 PSI
Deadband
2 - 5 PSI
Pressure Connection
1/4 in NPTF
Adjustments
Internal Adjustment, No Reference Dial
Approvals
CE,cULus,IECEx
Wetted Materials
Nickel-Plated Brass Pressure Conn, Phosphor Bronze Bellows
Mount
Direct,Pressure Connection
product series features
- Single SPDT switch output
- Sealed isolated brass or welded stainless steel bellows sensors
- Adjustable pressure setpoint ranges from 30" HgVac to 6000 PSI
- Internal adjustment
- Setpoint repeatability: ±1% to ±1.5% adjustable range
- NEMA 4X gasketed diecast aluminum enclosure with epoxy coating
- UL listed, cUL certified, CE compliant
more information & related documents
Series Description
Cost-effective pressure switches for general purpose use. Single SPDT switch output, internal, NEMA 4X enclosure, isolated metal bellows sensors. UL listed, cUL certified, CE compliant.
Kele Description
NEMA 4X PRESS SW, ADJ, 0 TO 100 PSI, SPDT
Manufacturer
United Electric
Related Documents
UE-ds-J6-B07-2025-09
