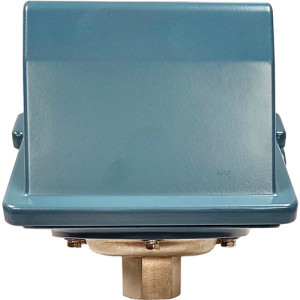

J402-555/1535 | United Electric | Pressure Components
NEMA 4X PRESS SW, ADJ, 0 TO 100 PSI, 2 SPDT
Brand:United Electric
MPN:J402-555/1535
SKU:J402-555/1535
List Price:
$986.54
Today's Price:
$513.00
Log in for customized pricingproduct specifications
Measurement
PSI
Connection Size
1/4 in
Type
Adjustable
Connection
NPTF
Housing Material
Epoxy-Coated Diecast Aluminum Enclosure
Switch Output
(2) SPDT
Contact Rating
15A @ 250 VAC
Repeatability
1%
Enclosure Rating
NEMA 4X
Process Variable
Pressure
Contact Type
(2) SPDT
Measurement Range
0 - 100 PSI
Switch Rating
15A @ 250 VAC
Overrange Pressure
100 PSI
Proof Pressure
225 PSI
Deadband
0.25 - 0.75 PSI
Pressure Connection
1/4 in NPTF
Adjustments
Internal Hex Screw Adjustment
Approvals
CE,cULus,FM
Electrical Connection
3/4" NPT w/ (2) 7/8" Diam Knockouts
Wetted Materials
316L SS Pressure Conn/Cap, Teflon Diaphragm
Mount
Direct,Pressure Connection
product series features
- Pressure ranges from 30" HgVac to 6000 PSI, differential pressure ranges from 1" WC to 200 PSID, temperature ranges from -120° to 640°F (-85° to 336°C)
- One, two, or three SPDT switch outputs, may be separated up to 100% of range
- Internal adjustment hex screw or reference dial
- Variety of wetted materials to fit most applications
- NEMA 4X epoxy-coated cast aluminum enclosure
- UL listed, cUL certified, FM approved, CE compliant; Optional ATEX or GOST intrinsic safety compliance
more information & related documents
Series Description
Pressure, differential pressure and temperature switches for general service applications. Single, dual, or triple SPDT switch output, internal adjustment by hex or reference dial, NEMA 4X enclosure, sensor materials to meet media and environmental requirements, UL, cUL, FM, CE, ATEX, GOST approvals
Kele Description
NEMA 4X PRESS SW, ADJ, 0 TO 100 PSI, 2 SPDT
Manufacturer
United Electric
Related Documents
UE-ds-400-B-10-2019-08
