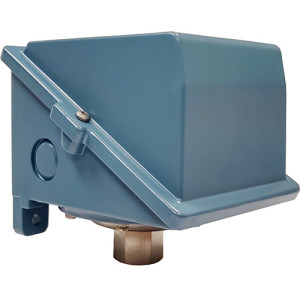

J400-452 | United Electric | Pressure Components
NEMA 4X PRESS SW, ADJ, 30"HGVAC TO 20 PSI, SPDT
Brand:United Electric
MPN:J400-452
SKU:J400-452
List Price:
$609.62
Today's Price:
$339.19
Log in for customized pricingproduct specifications
Measurement
HgVAC to PSI
Connection Size
1/4 in
Connection
NPTF
Housing Material
Epoxy-Coated Diecast Aluminum Enclosure
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1%
Enclosure Rating
NEMA 4X
Process Variable
Vacuum Pressure
Contact Type
SPDT
Measurement Range
30"HgVac - 20 PSI
Switch Rating
15A @ 125/250/480 VAC
Overrange Pressure
3 PSI
Proof Pressure
225 PSI
Deadband
0.2 - 1" Hg
Pressure Connection
1/4 in NPTF
Adjustments
Internal Hex Screw Adjustment
Approvals
CE,cULus,FM
Electrical Connection
3/4" NPT w/ (2) 7/8" Diam Knockouts
Wetted Materials
SS Pressure Conn/Cap, Buna N Diaphragm
Mount
Direct,Pressure Connection
product series features
- Pressure ranges from 30" HgVac to 6000 PSI, differential pressure ranges from 1" WC to 200 PSID, temperature ranges from -120° to 640°F (-85° to 336°C)
- One, two, or three SPDT switch outputs, may be separated up to 100% of range
- Internal adjustment hex screw or reference dial
- Variety of wetted materials to fit most applications
- NEMA 4X epoxy-coated cast aluminum enclosure
- UL listed, cUL certified, FM approved, CE compliant; Optional ATEX or GOST intrinsic safety compliance
more information & related documents
Series Description
Pressure, differential pressure and temperature switches for general service applications. Single, dual, or triple SPDT switch output, internal adjustment by hex or reference dial, NEMA 4X enclosure, sensor materials to meet media and environmental requirements, UL, cUL, FM, CE, ATEX, GOST approvals
Kele Description
NEMA 4X PRESS SW, ADJ, 30"HGVAC TO 20 PSI, SPDT
Manufacturer
United Electric
Related Documents
UE-ds-400-B-10-2019-08
