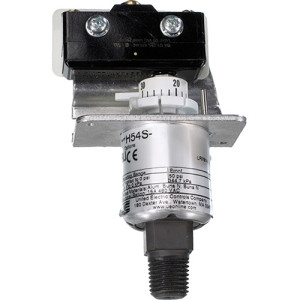

H54S-27 | United Electric | Pressure Components
SKEL PRESS SW, ADJ, 30 TO 300 PSI, SPDT
Brand:United Electric
MPN:H54S-27
SKU:H54S-27
List Price:
$296.15
Today's Price:
$164.78
Log in for customized pricingproduct specifications
Measurement
PSI
Connection Size
1/4 in
Type
Adjustable
Connection
NPTM
Housing Material
Skeleton Construction
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1%
Enclosure Rating
SKEL
Process Variable
Pressure
Contact Type
SPDT
Measurement Range
30 - 300 PSI
Switch Rating
15A @ 125/250/480 VAC
Overrange Pressure
100 PSI Above Setpoint
Proof Pressure
200 PSI Above SP (Max 600)
Deadband
1.3 - 4 PSI
Pressure Connection
1/4 in NPTM
Adjustments
Adjustment with Reference Dial
Approvals
CE,cULus,cURus
Wetted Materials
Aluminum Pressure Conn, Buna N Diaphragm
Mount
Direct,Pressure Connection
product series features
- Single or dual SPDT or switch outputs
- Adjustable pressure setpoint ranges from 30" HgVac to 6000 PSI
- Adjustable temperature setpoint ranges from -130° to 650° F (-90° to 343.3° C)
- Repeatability to ±1% full scale range
- Easy setting by reference dial or hex screw adjustment
- Brass or aluminum threaded pressure connections
- Adjustable or narrow deadband for improved accuracy
- NEMA 1 polycarbonate enclosure or open frame (skeleton) construction
- cUL, cULus listed, cURus recognized, CE compliant
more information & related documents
Series Description
Cost-effective pressure and temperature switches for OEM applications. Single or dual SPDT switch outputs, reference dial or hex adjustment, NEMA 1 enclosure or open frame skeleton construction. cUL, cULus listed, cURus recognized, CE compliant.
Kele Description
SKEL PRESS SW, ADJ, 30 TO 300 PSI, SPDT
Manufacturer
United Electric
Related Documents
UE-ds-54-B-07-2019-06
