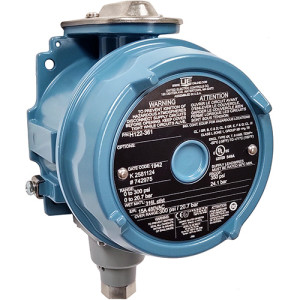

H122-376 | United Electric | Pressure Components
NEMA 4X PRESS SW, ADJ, 0 to 500 PSI, 2 SPDT
Brand:United Electric
MPN:H122-376
SKU:H122-376
List Price:
$1,659.62
Today's Price:
$923.41
Log in for customized pricingproduct specifications
Measurement
PSI
Connection Size
1/4 in
Connection
NPTF
Housing Material
Epoxy-Coated Diecast Aluminum Enclosure
Switch Output
(2) SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1%
Enclosure Rating
NEMA 4X,NEMA 7,NEMA 9,IP66
Process Variable
Pressure
Contact Type
(2) SPDT
Measurement Range
0 - 500 PSI
Switch Rating
15A @ 125/250/480 VAC
Overrange Pressure
500 PSI
Proof Pressure
800 PSI
Deadband
3 - 12 PSI
Pressure Connection
1/4 in NPTF
Adjustments
External Adjustment with Reference Dial
Approvals
CE,cULus,IECEx
Electrical Connection
3/4" NPT w/ Terminal Block
Wetted Materials
SS Pressure Conn, 316L SS Bellows
Mount
Direct,Pressure Connection
product series features
- Pressure ranges from 30" HgVac to 6000 PSI, differential pressure ranges from 30" Hg to 1000 PSI, temperature ranges from -180° to 650°F
- One or two SPDT outputs standard, optional DPDT or hermetic seal switch outputs available
- Easy-access terminal block to simplify wiring
- NEMA 4X epoxy-coated cast aluminum enclosure
- UL approvals for Class I, Divisions 1 and 2 environments, ATEX approved, CE compliant
- EXIDA Certified for use in SIL 2 functional safety systems, (SIL 3 capable)
more information & related documents
Series Description
Rugged pressure, differential pressure and temperature switches for Div 1 and Div 2 hazardous environments. Single SPDT or dual SPDT switch output, internal adjustment, or external adjustment with reference scale or dial, NEMA 4X enclosure, sensor materials to meet media and environmental requirements, UL, ATEX, NACE approved, CE compliant, SIL 2 Certified, SIL 3 capable
Kele Description
NEMA 4X PRESS SW, ADJ, 0 to 500 PSI, 2 SPDT
Manufacturer
United Electric
UE-IMT120-16-2023-12
