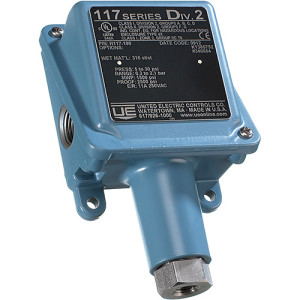

H117-191 | United Electric | Pressure Components
NEMA 4X PRESS SW, ADJ, 10 TO 100 PSI, SPDT
Brand:United Electric
MPN:H117-191
SKU:H117-191
List Price:
$905.77
Today's Price:
$503.97
Log in for customized pricingproduct specifications
Measurement
PSI
Connection Size
1/2 in
Connection
NPTF
Housing Material
Epoxy-Coated Diecast Aluminum, Gasketed Enclosure
Switch Output
SPDT
Contact Rating
11A @ 125/250 VAC Resistive,5A @ 28 VDC,1A @ 48 VDC,0.5A @ 125 VDC
Repeatability
1.5%
Enclosure Rating
NEMA 4X
Process Variable
Pressure
Contact Type
SPDT
Measurement Range
10 - 100 PSI
Switch Rating
11A @ 250 VAC
Overrange Pressure
1500 PSI
Proof Pressure
2500 PSI
Deadband
3 - 30 PSI
Pressure Connection
1/2 in NPTF
Adjustments
Internal Adjustment with High/Low Reference Scale
Approvals
CE,cULus,IECEx,NACE MR-0175 Compliant
Electrical Connection
1/2" NPTF, (2) 7/8" Diam Knockouts
Wetted Materials
Welded 316 SS Pressure Conn and Diaphragm
Mount
Direct,Pressure Connection
product series features
- Single SPDT hermetically sealed snap action switch standard, DPDT optional
- Pressure ranges from 30" HgVac to 3500 PSI with internal setpoint lock and high/low reference scale
- Temperature ranges from -120° to 640° F with reference dial
- NEMA 4X epoxy-coated diecast aluminum enclosure
- Polished stainless steel flush-mount sensors 1/4" or 1/2" NPTF brass or stainless steel process connections
- Enclosed terminal block wiring
- UL Listed Class I, Division 2, Class II, Division 2, Class III Certified, CE Compliant, NACE Approved (welded diaphragm models), ATEX Approved
more information & related documents
Series Description
Rugged pressure and temperature switches for Class I/II, Div 2 hazardous areas or corrosive atmospheres. Single SPDT switch output (DPDT optional), internal adjustment, reference scale, NEMA 4X enclosure, sensor materials to meet media and environmental requirements, UL, NACE approved, CE compliant.
Kele Description
NEMA 4X PRESS SW, ADJ, 10 TO 100 PSI, SPDT
Manufacturer
United Electric
Related Documents
UE-IMT117-08-2023-04
