H100-706 | United Electric | Pressure Components

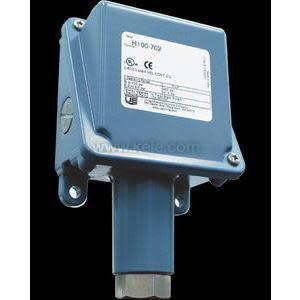

Pressure Switch, 100-1700 psi Adjustable Range, 10 to 30 psi Deadband, Buna N Diaphram and O-ring, 1/4" FNPT
Brand:United Electric
MPN:H100-706
SKU:H100-706
List Price:
$335.67
Today's Price:
$174.55
Log in for customized pricingproduct specifications
Adjustments
Internal Adjustment with High/Low Reference Scale
Approvals
CE,UL,cUL
Connection
NPTF
Connection Size
1/4 in
Contact Rating
15A @ 125/250/480 VAC
Contact Type
SPDT
Deadband
10 - 30 PSI
Direction
Uni-Directional
Enclosure Rating
NEMA 4X
Housing Material
Epoxy-Coated Diecast Aluminum Enclosure
Measurement
PSI
Measurement Range
100 - 1700 PSI
Media Compatibility
Air
Mount
Direct,Pressure Connection
Overrange Pressure
2000 PSI
Pressure Connection
1/4 in NPTF
Process Variable
Pressure
Proof Pressure
2500 PSI
Repeatability
1%
Supply Voltage (Nominal)
240 VAC
Switch Output
SPDT
Type
Adjustable
product series features
- NEMA 4X epoxy-coated diecast aluminum enclosure
- Single SPDT snap-action switch output standard (DPDT optional)
- 1/8", 1/4", or 1/2" NPTF process connections
- Adjustable setpoint ranges: 0.2" WC to 500 PSID differential pressure, 300" WC Vac to 5000 PSI pressure, and -180° to 650° F (-117.8° to 343.3° C) temperature
- Tamper-resistant setpoint lock standard
- Internal adjustment standard, some models include reference scale or dial
- Setpoint repeatability of ±1% to ±1.5% adjustable range, depending on model
- UL Listed, cUL certified, ATEX approved, CE compliant, some models NACE MR0175 compliant
- EXIDA Certified for use in SIL 2 functional safety systems, SIL3 capable
more information & related documents
Series Description
<p>UE's 100 Series is a cost-effective pressure and temperature switch for use in process plants. UE 100 models are used in heat tracing, freeze protection, pumps, compressors, fire suppression systems, and as inputs for annunciator panels. The rugged NEMA 4X one-piece enclosure features a clamshell design slanted cover for easy access to the wiring terminal block. The wide variety of materials, microswitch, and process connection options make this SIL-certified switch a great fit for applications that require a weatherproof device.</p>
Kele Description
PRESS SW, ADJUSTABLE, 100-1700 PSI
Manufacturer
United Electric
UE-100-120-12-SIL-man-MECH-SM-02-2021-02
