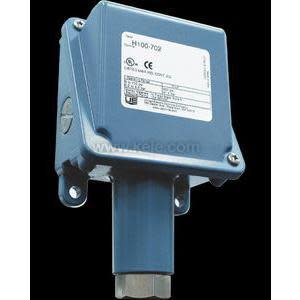

H100-612 | United Electric | Pressure Components
Pressure Switch, 125-3000 psi Adjustable Range, 40 to 250 psi Deadband, 303 Stainless Steel Piston, Buna O-ring, 1/4" FNPT
Brand:United Electric
MPN:H100-612
SKU:H100-612
List Price:
$475.10
Today's Price:
$247.05
Log in for customized pricingproduct specifications
Measurement
PSI
Media Compatibility
Air
Connection Size
1/4 in
Type
Adjustable
Connection
NPTF
Housing Material
Epoxy-Coated Diecast Aluminum Enclosure
Switch Output
SPDT
Contact Rating
15A @ 125/250/480 VAC
Repeatability
1.5%
Enclosure Rating
NEMA 4X
Process Variable
Pressure
Contact Type
SPDT
Measurement Range
125 - 3000 PSI
Overrange Pressure
6000 PSI
Proof Pressure
10000 PSI
Deadband
40 - 250 PSI
Pressure Connection
1/4 in NPTF
Adjustments
Internal Adjustment with High/Low Reference Scale
Approvals
CE,UL,cUL
Supply Voltage (Nominal)
240 VAC
Direction
Uni-Directional
Mount
Direct,Pressure Connection
product series features
- NEMA 4X epoxy-coated diecast aluminum enclosure
- Single SPDT snap-action switch output standard (DPDT optional)
- 1/8", 1/4", or 1/2" NPTF process connections
- Adjustable setpoint ranges: 0.2" WC to 500 PSID differential pressure, 300" WC Vac to 5000 PSI pressure, and -180° to 650° F (-117.8° to 343.3° C) temperature
- Tamper-resistant setpoint lock standard
- Internal adjustment standard, some models include reference scale or dial
- Setpoint repeatability of ±1% to ±1.5% adjustable range, depending on model
- UL Listed, cUL certified, ATEX approved, CE compliant, some models NACE MR0175 compliant
- EXIDA Certified for use in SIL 2 functional safety systems, SIL3 capable
more information & related documents
Series Description
<p>UE's 100 Series is a cost-effective pressure and temperature switch for use in process plants. UE 100 models are used in heat tracing, freeze protection, pumps, compressors, fire suppression systems, and as inputs for annunciator panels. The rugged NEMA 4X one-piece enclosure features a clamshell design slanted cover for easy access to the wiring terminal block. The wide variety of materials, microswitch, and process connection options make this SIL-certified switch a great fit for applications that require a weatherproof device.</p>
Kele Description
PRESS SW, ADJUSTABLE, 125-3000 PSI
Manufacturer
United Electric
UE-IMP100-14-2025-02
