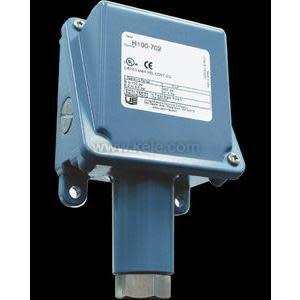

Blue box-shaped device with a label on the front and a cylindrical metal fitting protruding from the bottom

H100-173 | United Electric | Pressure Components

Pressure Switch, 4-100 psi Adjustable Range, 0.1 to 2.5 psi Deadband, Welded 316L Stainless Steel Diaphram, 1/2" FNPT

Brand:United Electric

MPN:H100-173

SKU:H100-173

List Price:

$713.56

Today's Price:

$371.05

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

PSI

Media Compatibility

Air

Range

±100 psi

Accuracy

Housing Material

Metallic

Contact Rating

15 A @ 125 VAC,15 A @ 250 VAC,15 A @ 480 VAC

Enclosure Rating

NEMA 4X

Contact Type

SPDT

Measurement Range

4 - 100 PSI

Supply Voltage (Nominal)

240 VAC

product series features

Single switch (SPDT or DPDT) output
Epoxy Coated and Gasketed Cast Aluminum Enclosure Type 4X
Tamper-Resistant Set Point in.Lock in.
Pump switch models with wide adjustable deadband
Ultra low pressure, in.models in.
Welded stainless steel diaphragm models
Optional sensor material for corrosive media

more information & related documents

Series Description

The H100 Series Pressure Switch is rugged with one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. This series contains models with variety of adjustable set point ranges and pump switch models with wide adjustable deadband.

Kele Description

PRESS SW, ADJUSTABLE, 4-100 PSI

Manufacturer

United Electric
