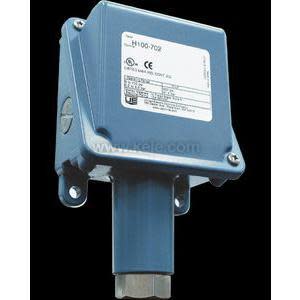

Blue box-shaped device with a label on the front and a cylindrical metal fitting protruding from the bottom

H100-15884 | United Electric | Pressure Components

Pressure Switch, 700-5000 psi Adjustable Range, 80-500 psi Adjustable Deadband, 303 Stainless Steel Piston, Buna O-ring, 1/4" FNPT

Brand:United Electric

MPN:H100-15884

SKU:H100-15884

List Price:

$1,691.00

Today's Price:

$879.32

product datasheet

installation instructions

Lead time of > 15 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

PSI

Media Compatibility

Air

Range

±10,000 psi

Type

Adjustable

Accuracy

1.5%

Housing Material

Metallic

Contact Rating

20 A @ 125 VAC,20 A @ 250 VAC,20 A @ 480 VAC

Enclosure Rating

NEMA 4X

Contact Type

SPDT

Supply Voltage (Nominal)

240 VAC

product series features

Single switch (SPDT or DPDT) output
Epoxy Coated and Gasketed Cast Aluminum Enclosure Type 4X
Tamper-Resistant Set Point in.Lock in.
Pump switch models with wide adjustable deadband
Ultra low pressure, in.models in.
Welded stainless steel diaphragm models
Optional sensor material for corrosive media

more information & related documents

Series Description

The H100 Series Pressure Switch is rugged with one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch. This series contains models with variety of adjustable set point ranges and pump switch models with wide adjustable deadband.

Kele Description

PRESS SW, ADJUSTABLE, 700-5000 PSI

Manufacturer

United Electric
