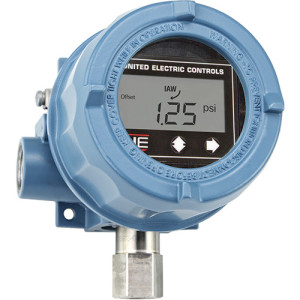

1XTXSWP15 | United Electric | Pressure Components
NEMA 4X/IP66 PRESS SW, ADJ 0 TO 300 PSI, SPST, 4-20 MA/HART
Brand:United Electric
MPN:1XTXSWP15
SKU:1XTXSWP15
List Price:
$2,444.23
Today's Price:
$1,359.97
Log in for customized pricingproduct specifications
Measurement
PSI
Connection Size
1/2 in
Type
Adjustable
Connection
NPTF
Accuracy
0.5% Span
Housing Material
Epoxy-Coated Aluminum Alloy, Tempered Glass Window
Switch Output
SPST, 4-20 mA/HART
Contact Rating
280 VAC/VDC @ 0.3A
Repeatability
0.1% Span
Enclosure Rating
NEMA 4X,IP66
Process Variable
Pressure
Is HART
true
Contact Type
SPST
Measurement Range
0 - 300 PSI
Switch Rating
280 VAC/VDC @ 0.3A
Overrange Pressure
450 PSI
Proof Pressure
600 PSI
Pressure Connection
1/2 in NPTF
Approvals
CE,IECEx,cULus,SIL3
Electrical Connection
(2) 3/4" NPT w/ Terminal Block
Wetted Materials
316L SS Pressure Conn and Welded Diaphragms
Mount
Direct,Pressure Connection
product series features
- Switch only, transmitter only, or hybrid transmitter/switch models available
- Two switch-only models available: High voltage, low current for compatibility to worldwide DCS and PLC systems, and high voltage, high current for switching high level loads directly at the measurement point
- Solid state switch-only models replace mechanical switches for cost-effective upgrades using existing wiring
- NAMUR standard and HART® enabled transmitter; 4-20 mA output plus programmable switch for process monitoring, alarm, and shutdown
- Adjustable Ranges: Pressure -14.7 to 6000 PSI, Temperature -40° to 1000°F, Differential Pressure 0 to 200 PSID
- Configurable "I Am Working" self-diagnostics ensure the instrument is functioning properly
- Display and keypad provide easy, fast, secure field programming without taking the device out of service
- Programmable setpoint and deadband provide versatile, accurate, repeatable alarm and shutdown switching without "wet" calibrations on a pressure test stand
- All models UL, CSA approved for Class I Div 1, Class II Div 1, Class III, plus Class 2 Zone 1, and Class 1 Zone 2 environments
- One Series 1XSW switches are now certified SIL2/SIL3 capable for compliance with IEC functional safety requirements
more information & related documents
Series Description
Programmable solid state pressure, differential pressure, and temperature devices with local indication for general service, hazardous area, or harsh environment applications. 4-20 mA transmitter-only, switch-only, or hybrid transmitter-switch models, front-panel digital process display and keypad adjustment, adjustable differential, I Am Working self-diagnostics, NEMA 4X/IP66 epoxy-coated aluminum alloy 360 enclosure with tempered glass window, UL listed, CSA approved, cUL certified, CE compliant.
Kele Description
NEMA 4X/IP66 PRESS SW, ADJ 0 TO 300 PSI, SPST, 4-20 MA/HART
Manufacturer
United Electric
UE-One-IM-1XTXSW-09-2021-12
