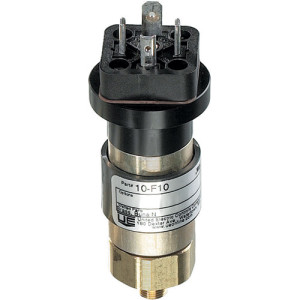

10-F15 | United Electric | Pressure Components

Name: 10-F15
Brand: United Electric
SKU: 10-F15
Price: 137 USD
Availability: InStock

NEMA 4 PRESS SW, ADJ, 400 TO 4700 PSI, SPDT

Brand:United Electric

MPN:10-F15

SKU:10-F15

List Price:

$263.46

Today's Price:

$137.00

product datasheet

installation instructions

product specifications

Measurement

PSI

Connection Size

1/4 in

Type

Adjustable

Connection

NPTM

Housing Material

Aluminum Enclosure

Switch Output

SPDT

Contact Rating

5A Resistive/5A Inductive @ 125/250 VAC,5A Resistive/3A Inductive @ 30 VDC,0.5A Resistive/0.25 Inductive @ 125 VDC

Repeatability

1.5%

Enclosure Rating

IP65

Process Variable

Pressure

Contact Type

SPDT

Measurement Range

400 - 4700 PSI

Switch Rating

5A Resistive, 5A Inductive 125/250 VAC

Overrange Pressure

8000 PSI

Proof Pressure

10000 PSI

Deadband

100 - 600 PSI

Pressure Connection

1/4 in NPTM

Adjustments

Slotted Setpoint Adjustment Screw

Approvals

cULus Recognized,CE

Electrical Connection

(4) Terminal DIN Connector

Wetted Materials

Brass Pressure Conn, SS Piston

Mount

Direct,Pressure Connection

product series features

Aluminum NEMA 1 or NEMA 4 enclosure
Single SPDT output
Internal screw-type adjustment
Buna-N diaphragm with O-ring models, adjustable pressure ranges 4 to 600 PSI, proof pressures to 3000
Stainless steel piston with Buna-N O-ring models, adjustable pressure ranges 100 to 7500 PSI, proof pressures to 12,000 PSI
Choice of electrical terminations: push-on terminals, NPTM or NPTF conduit connections, DIN connectors, 20" leads or 5' cable
cULus recognized, CE compliant to low voltage and pressure equipment directives standard; ATEX intrinsically safe compliance optional

more information & related documents

Series Description

General service compact cylindrical pressure switch for use where space is a premium. Piston or diaphragm sensor, single SPDT switch output, NEMA 1 and NEMA 4 enclosures, adjustable ranges 4 to 7500 PSI. UL, CSA, CE approvals. Choice of seven electrical terminations.

Kele Description

NEMA 4 PRESS SW, ADJ, 400 TO 4700 PSI, SPDT

Manufacturer

United Electric
