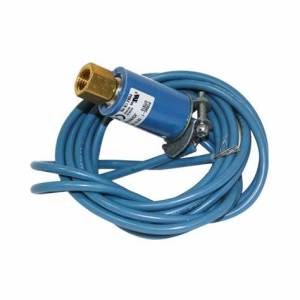

A small blue cylinder with a brass connector attached to a lengthy blue cable, coiled neatly around the device and held by a small metal clamp.

P100AP-2C | Johnson Controls | Pressure Components

Pressure Switch, SPST, Open-Low Switch Action, Automatic reset, Open Construction (No Clamp/Conduit Box) Upgraded Style, Opens at 35 psig (241 kPa) and closes at 60 psig (414 kPa)

Brand:Johnson Controls

MPN:P100AP-2C

SKU:P100AP-2C

List Price:

$92.00

Today's Price:

$47.84

product datasheet

installation instructions

Lead time of 14 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

PSI

Media Compatibility

Air

Range

±100 psi

Type

Adjustable

Contact Type

SPST

Contact Rating

6 A @ 120 VAC,6 A @ 240 VAC

Supply Voltage (Nominal)

240 VAC

product series specifications

Electrical Ratings: 120 and 240 VAC at 50/60 Hz (See Tables 3 and 4 for ampere ratings.)

Burst Pressure: 3,500 psi (24,132 kPa)

Maximum Overpressure:
250 psi (1,724 kPa) overpressure rating for P100 controls with 20 to 100 psi (138 to 690 kPa) working pressure
600 psi (4,137 kPa) overpressure rating for P100 controls with 100 to 500 psi (690 to 3,448 kPa) working pressure
800 psi (5,516 kPa) overpressure rating for P100 controls with 500 to 700 psi (3,447 to 4,826 kPa) working pressure

Refrigerant Temperature: -65 to 275°F (-54 to 135°C)

Ambient Temperature Operating: -20° to 150°F (-29° to 66°C)

Dielectric Strength: 750 Vrms Across Open Contacts
1,550 Vrms (minimum) Terminals to Fitting

Ambient Humidity: 0 to 95% RH non-condensing; Maximum Dew Point: 85°F (29°C)

Approvals:
UL Recognition (US): File SA516, CCN SDFY2
UL Recognition (Canada): File SA516, CCN SDFY8

product series features

Compact Size and Lightweight Construction- Allows for mounting control directly to refrigeration piping or pressure tap points, and reduces space needed for controls
Tamper-proof, Factory-Calibrated Pressure Setpoints- Provides accurate, repeatable pressure control at pressures ranging from vacuum to 750 psig
Optional Trip-Free Manual Reset- Provides a manual-reset lockout function for unmonitored equipment that cannot be overridden or reset until system pressure returns to a specified level
Optional Heavy Duty Electrical Contacts- Provides direct inline control of most single phase fractional horsepower motors

more information & related documents

Series Description

The JCI P100 Series Encapsulated Pressure Controls are designed for economical, compact, direct-mount, On/Off pressure control in refrigeration and air conditioning applications, and are compatible with all common non-corrosive refrigerants. P100 controls may also be used for other non-corrosive fluid applications. Standard P100 controls are available in a variety of factory set, non-adjustable pressure setpoints. Non-standard models with customer specified setpoints are available in quantity orders only. Standard P100 control models are supplied with 48 in wire leads. Some standard models have a conduit clamp for 3/8 in flexible metal conduit or conduit box with an opening for a 1/2 in conduit connector.

Kele Description

PRESS SW, ADJUST, 35-60 PSIG

Manufacturer

Johnson Controls
