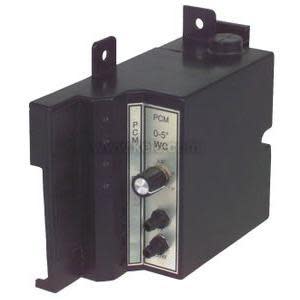

PCM-020 | Kele | Pressure Components
Pressure Controller, 0-2.00" WC
Brand:Kele
MPN:PCM-020
SKU:PCM-020
List Price:
$1,400.00
Today's Price:
$728.00
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Range
±5 in WC
Type
Controller
Accuracy
2%
Output
4 - 20 mA
Mount
DIN rail
product series specifications
Supply Voltage: 24 VDC +15%, -10%, <75 mA
Accuracy: ±2% of range (including linearity and hysteresis)
Resolution: 255 steps
Signal Output: 4-20 mA @ 650Ω (sourcing)
Setpoint Adjust Local: POT with range legend
Setpoint Remote Adjust:
- 10KΩ POT, (up to 24" away) (UCM-SPA)
- 1-5VDC @ 10KΩ
- 4-20 mA @ 250Ω
Control Type: Single loop Proportional or "PI"
Display/Audible: Green Power LED
Sensor Type: Piezoresistive
Adjustments (Loop tuning): Adjustable DA/RA, Proportional range and Integral time
Overpressure: (Burst) 300" WC (74.7 kPa)
Max Operating Pressure: (Proof) 200" WC (49.8 kPa)
Operating Temperature: 32° to 125°F (0° to 52°C)
Operating Humidity: 0 to 90% Non-condensing
Wetted Parts: Silicon
Media Compatibility: Inert dry air
Process Connection: Two 3/16" dia HI/LO Brass nipples for 1/4" Poly tubing
Wiring Terminations: 3-4 depending on configuration, <18 AWG
Mounting: 2 tabs, 0.19" holes or DIN rail option (47)
Enclosure Rating: Noryl plastic, NEMA 1, UL94V-0
Dimensions: 2.0"W x 4.6"H x 4.8"D, (5.1 x 11.7 x 12.2 cm)
Weight: 1.3 lb (0.61 Kg)
Approvals: RoHS
Warranty: 1 year
product series features
- Proportional or PI control
- Easy setup
- DIP switch/jumper setup and tuning
- Selectable proportional band
- Selectable integral reset rate
- Direct or reverse acting
- Optional DIN rail mounting
- Compact size
- Position insensitive
more information & related documents
Series Description
The Kele PCM Series Pressure Controller is a low air pressure transducer combined with a microprocessor-based proportional or Proportional plus Integral (PI) controller. The compact size and ease of installation and setup makes this unit ideal for standard HVAC applications. Ranges are available from 0-2, 3, or 5 in W.C. The setpoint adjustment knob is clearly marked with the appropriate scale for ease of use. All setup and tuning is easily accomplished by DIP switches and bottle plug jumpers. Mounting is a snap with the convenient mounting tabs or with the DIN rail mounting option. Remote setpoint is also possible with voltage or milliamp signals. The PCM Series can be configured for direct or reverse acting control.
Kele Description
PRESSURE CONTROLLER, ++/-2.00%, 0-2.00" WC, 4-20 M
Manufacturer
Kele
