KRPM | Kele | Pressure Components

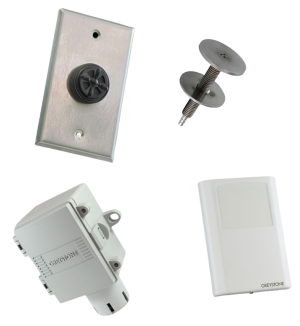

PV Series

OPV (OUTSIDE AIR PICK-UP PORT)

- HOSE FITTING:Barbed fitting, min 3/16” ID tubing

- AMBIENT OPERATING RANGE: -40 to 50°C (-40 to 122°F), 5 to 95 %RH non-condensing

- ENCLOSURE: Polycarbonate, UL94-V0, IP65 (NEMA 4X)

- WIRE ACCESS HOLE: Rear entry or top entry hold for conduit or cable gland.

21.83mm (0.859”) diameter

RPV (STAINLESS STEEL PLATE PICK-UP PORT)

- HOSE FITTING: Barbed fitting, min 3/16” ID tubing

- AMBIENT OPERATING RANGE: -20 to 60°C (-4 to 140°F), 5 to 95 %RH non-condensing

- ENCLOSURE:Stainless Steel, IP50 (NEMA 1)

CPV (CONTINENTAL ABS PICK-UP PORT)

- HOSE FITTING: Barbed fitting, min 3/16” ID tubing

- AMBIENT OPERATING RANGE: 0 to 50°C (32 to 122°F), 5 to 95 %RH non-condensing

- ENCLOSURE: White ABS, IP30 (NEMA 1)
