FMS2C-BT10 | Johnson Controls | Pressure Components
RP CONTROL, 0.5% , +/- 0.25", BACNET, 1 REMOTE SENSORS
Brand:Johnson Controls
MPN:FMS2C-BT10
SKU:FMS2C-BT10
List Price:
$9,404.00
Today's Price:
$4,890.08
Log in for customized pricingproduct specifications
Media Compatibility
Air
Range
±1 in WC
Type
Controller
Output
4 - 20 mA
Supply Voltage (Nominal)
24 VAC
product series specifications
Pressure, Alarm, Display Range: ±0.2500" wc
Accuracy: ±0.5% FS
Air Flow Sensor Type: Digital differential pressure features no offset, zero drift and is hysteresis free
Control Resolution: ±0.0010" wc
Control Capability: Up to 4 independent spaces
Analog Inputs: 4 universal inputs (0 mA to 20 mA, 4 mA to 20 mA, 0 VDC to 5 VDC, 0 VDC to 10 VDC); 2 thermistor inputs (NTC Type 2 or 3, 10K at 77° F)
Signal Output: 4 universal outputs (0 mA to 20 mA, 4 mA to 20 mA, 0 VDC to 5 VDC, 0 VDC to 10 VDC)
Digital Inputs: 4 active-high or active-low, 0 to 5 VDC or 0 to 24 VDC
Relay Outputs: 4 sets of N.O. or N.C. contacts, 1 A @ 24 VDC
Communication: BACnet MS/TP (to BAS) 76.8k, 38.4k, 19.2k, 9600 baud, Metasys N2 open
Operating Temperature: 32° to 104°F (0° to 40°C)
Operating Humidity: 10 to 95% RH (Non-condensing)
Power Requirements: 24 VAC (nominal, 21.6 VAC minimum/26.4 VAC maximum), 50/60 Hz 30 VA power supply, Class 2, Limited Energy, or LPS
Password Protection: Up to 50 user passwords with 2 access levels (administrator and restricted)
Display: 720 pixels x 1280 pixels
Alarm Indication: 360° Safety Halo color coded visual, audible alarm
Alarm Silence: Touchscreen, auto-reset
Mounting: Thin mount for shallow wall cavities, surface mount for mounting to standard single-gang wall box
Exterior Dimensions: 6.56 in. x 5.5 in. x 1.88 in. (166.62 mm x 139.7 mm x 47.75 mm)
Warranty: Limited
product series features
- Parameters - Controls and monitors up to six parameters across four rooms
- Connectivity - 18 available Input/Output (I/O) resources
- Protocols - BACnet® MS/TP and N2 communication
- Lighting - 360 degree Safely Halo™ illuminated edge helps staff monitor spaces down long corridors.
- Design - Intuitive user interface allows for fast and easy set up.
- Display - 5 in (127 mm) high definition 720 pixels by 1280 pixels touchscreen display that works with rubber, nitrile, and latex gloves.
- Non-volatile memory - Saves users settings in case of a power outage.
- Password protection - Two access levels to prevent unauthorized access.
- Energy savings - Unoccupied mode reduces air and temperature changes.
- Maintenance free pressure sensor - Provides highly accurate, long-term stability.
- Home screen customization - The user can define the parameters displayed.
- Display override - Display measured values from the other monitored devices within the building management system (BMS).
- Global release - Offers a user interface that is translated into 17 languages.
more information & related documents
Series Description

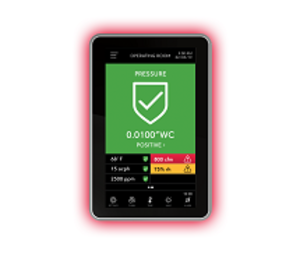

The Triatek FMS-2000C Critical Environment Controller ensures laboratory and healthcare settings are safe for all occupants by continuously verifying room pressure and airflow. It can precisely control and monitor six parameters, including differential pressure, temperature, humidity, CO2, airflow, and air changes per hour. One controller can control or monitor up to four spaces simultaneously for any of the six parameters. This controller has a displayed flow resolution down to 0.0001 in W.C. and instantly updates as conditions change.The FMS-2000C provides maximum room status awareness with color-coded visual alarms both on screen and with the 360 degrees Safety HaloTM illuminated edge, which allows staff to easily monitor spaces down long corridors. The audible alarm can be muted with one tap to the screen to help reduce audible alarm fatigue. There are two password protected access levels, one for administrators and one for restricted level users, such as nurses.
Kele Description
RP CONTROL, 0.5% , +/- 0.25", BACNET, 1 REMOTE SENSORS
Manufacturer
Johnson Controls
Related Documents
JCI-FMS2000C Datasheet
