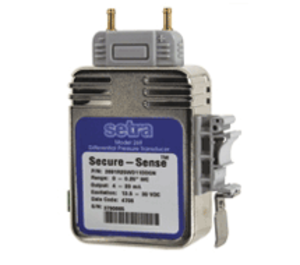

* product series image displayed

269425-02 | Setra | Pressure Components

SECURITY CAL KEY

Brand:Setra

MPN:269425-02

SKU:269425-02

List Price:

$391.04

Today's Price:

$203.34

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Tools and Miscellaneous

product series specifications

Supply Voltage: 13.5 to 30 VDC @ 20 mA

Accuracy: ± 0.5% Full scale

Signal Output: 4-20 mA @ 525Ω (loop powered)

Sensor Type: Capacitive

Adjustments: (Z/S) Push Button Zero and Span (security key req.)

Normal Measurement Range: 0 to 10"WC (0 to 2.5kPa), Uni- or Bi- Directional

Overpressure: (Burst) ±10 psid (68.95 kPa)

Max Operating Pressure: ≥2"WC, (±0.498 kPa)

Operating Temperature: 20 to 140°F (-6.6 to 60°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: Stainless steel

Media Compatibility: Inert: dry air

Process Connection: 3/16"OD brass, for ¼" OD tubing

Wiring: Terminals

Mounting: DIN rail (vertical position)

Enclosure: Rating ABS Plastic, NEMA 1

Dimensions: 5.1"W x 3.9"H x 1.29"D, (13 x 10 x 3.2 cm)

Weight: 0.56 lb (0.3 Kg)

Approvals: CE

Warranty: 1 year

product series features

2 psig overpressure
0.5% full scale accuracy
Reverse wiring protection
4-20 mA output
Setra quality standards are based on ANSI-Z540-1. The calibration of this product is NIST traceable.
Bidirectional ranges available

more information & related documents

Series Description

The Setra 269 Series differential pressure transmitters are designed for high performance applications such as clean rooms, isolation rooms, and other critical environments. The transmitters offer full scale accuracy of ±0.5% with excellent long term stability. Installation and calibration is easy with the removable process head, detachable terminal block and Din Rail mounting.

Kele Description

SECURITY CAL KEY

Manufacturer

Setra
