G51001101000 | Kele | Pressure Components

Supply Voltage: 11 to 33 VDC @ 25 mA

Current Output: 4-20 mA @ 800 Ω (loop powered)

Accuracy: ±0.5% Full scale (Linearity, Hysteresis & Repeatability)

Sensor Type: Ceramic pressure sensor

Max DP (Port to Port):
0-60 psid = 174 psi (1199 kPa)
0-100 psid = 464 psi (3198 kPa) high port / 174 psi (1199 kPa) low port

Overpressure (Burst):
0-60 psid = 543 psi (3743 kPa)
0-100 psid = 1088 psi (7501 kPa)

Max Operating Pressure (Proof):
0-60 psid = 362 psi (2455 kPa)
0-100 psid = 725 psi (4999 kPa)

Operating Temperature: 5° to 176°F (-15° to 80°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: 303 stainless steel w/FPM (Viton®) seals

Media Compatibility: Liquids/Gases compatible w/303 SS

Process Connection: 1/8" FNPT

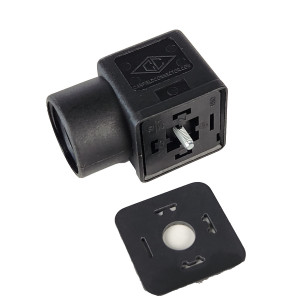

Wiring Terminations: DIN 43650-A connector w/ 2 terminals

Mounting: L-Bracket w/2, 0.2" holes for #6 or #8 screws

Enclosure Rating: NEMA 4, (IP66)

Dimensions: 1.73"W x 5.9"H x 2.53"D (4.4 x 15 x 6.4 cm)

Weight: 0.94 lb (0.4 Kg)

Approvals: CE, RoHS

Warranty: 1 year
