ZPS-ACC01

ZPS-ACC01 | BAPI | Pressure

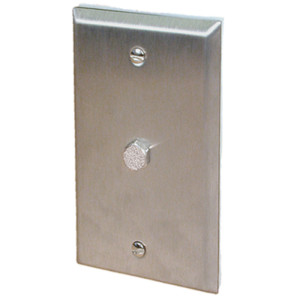

2 x 4 Stainless Steel Wall Plate with Static Pickup

Brand:BAPI

MPN:ZPS-ACC01

SKU:ZPS-ACC01

List Price:

$27.41

Today's Price:

$14.25



Availability: 64 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Control Type

PID

Media Compatibility

Air

Mounting

Panel, Wall Mount

Sensor Type

Micro-machined, single crystal silicon

Type

Pressure Pick-Up

Warranty

5 Years

Weight

0.2 lbs (0.10 Kg)

product series specifications

Specifications:

Current Output

7 to 4 0VDC @ 20 mA

Volts Output

18 to 32 VAC @ 0.12VA, 13 to 40 VDC @ 4.9 mA

Accuracy

±0.25% of range @72? (NIST included)

Signal Output

0-5/10V @ 1K?, 4-20mA @ l850?

Sensor Type

Capacitive

Adjustments

Range select from DIP switches

Normal Measurement Range

0 to 5?WC, Uni- or Bi- Directional

Display

LCD, 4 digits, 0.37? high (readout may be neutralized)

Overpressure

(Burst) ±41.52?WC (10.34 kPa)

Max Operating Pressure

(Proof) ±27.67?WC, (±6.89 kPa)

Operating Temperature

-4 to 140?(-20 to 60?)

Operating Humidity

0 to 95% Non-condensing

Wetted Parts

Silicone

Media Compatibility

Inert dry air

Process Connection

3/16? OD brass, for 1/4? OD tubing

Wiring

3 plug-in terminals 2-(4-20mA), 3-(Volts)

Mounting

2 or 4 , #10 screws (vertical position)

Enclosure Rating

UV-Polycarbonate UL94-V0, NEMA 4, (IP66)

Dimensions

4.1?W x 5.49?H x 2.5?D, (10.4 x 13.9 x 6.4 cm)

Weight

1.0 lb (0.45 Kg)

Approvals

CE, RoHS

Warranty

3 years

product series features

  • Field-selectable ranges and output signals
  • Five direct and five bidirectional standard ranges
  • 4-20 mA, 0-5 VDC, or 0-10 VDC output signal
  • Inches of water or Pascal engineering units
  • Optional large LCD display
  • Microprocessor controlled auto-zero
  • Rugged IP66 (NEMA 4) housing
  • Short-circuit proof and polarity protected
  • Three-year warranty

more information & related documents

Series Description

The BAPI ZPS Series Differential Pressure Transmitter is an accurate, rugged and economical solution for measuring and reporting duct/building static pressure, room-to-room differential pressure or air flow velocities/volumes. The ZPS Series micro-machined silicon piezoresistive pressure sensor is specifically developed for low differential pressure. The sensor's custom ASIC (Application Specific Integrated Circuit) provides five-point error correction over the compensated temperature range for excellent accuracy, repeatability and stability. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.<br>

Kele Description

STATIC P WALL UNIT
