52458504 | Wika Instrument Corporation | Pressure Components

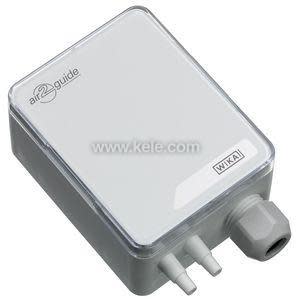

Air Differential Pressure Transmitter, Multi-Range, 0-10" WC, With Display, With Auto Zero
Brand:Wika Instrument Corporation
MPN:52458504
SKU:A2G50E007CEOMA1
List Price:
$1,512.00
Today's Price:
$786.24
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
Inches of Water Column
Media Compatibility
Air
Range
±10 in WC
Type
Multi
Accuracy
1.5%
Display
LCD
Enclosure Rating
NEMA 3
Approvals
CE
Supply Voltage (Nominal)
24 VAC
Mount
Wall
product series specifications
Supply Voltage: 24 VAC ±10% @ 0.5 VA. 24 VDC ±10% @ 0.35 mA
Accuracy: ±1.5% full scale
Signal Output: 0-10V @ 1KΩ, 4-20 mA @ 500Ω (Sourcing)
Sensor Type: Piezo measuring cell
Adjustments: (Z/S) Push Button Zero, 10 min Auto re-zero option
Normal Measurement Range: 0 to 28 psi, Uni-Directional, ±0.4 WC Bi-Directional
Display: Multi-digit display option
Overpressure: (Burst)±120 WC (29.9 kPa)
Max Operating Pressure: (Proof) ±100"WC, (±24.9 kPa)
Operating Temperature: 14 to 122°F (-10 to 50°C)
Operating Humidity: 0 to 95% Non-condensing
Media Compatibility: Inert dry air
Process Connection: 3/16" OD ABS Plastic, for 1/4" OD tubing
Wiring Terminals: 3-(4-20mA), 3-(Volts)
Mounting: 2, #8 screws
Enclosure Rating: ABS Plastic, NEMA 3R
Dimensions: 2.65"W x 3.36"H x 1.7"D, (6.73 x 8.53 x 4.29 cm)
Weight: 0.3 lb (0.14 Kg)
Approvals: CE
Warranty: 2 year
product series features
- Eight selectable ranges within each option code range
- Selectable 0 to 10 V or 4 to 20 mA output signal
- Compact size
more information & related documents
Series Description
The Wika A2G-50 Series Multi-Range differential pressure transmitter is the ideal accessory to complete a differential producer primary flow meter such as an averaging pitot tube. A DP transmitter that can be partnered with the AMP series, DPFS series and FXP series products to enable DP measurement with those devices. The unit is excellent for a room-to-room differential pressure signal to BAS. Each of the three range option code has eight selectable DP ranges within that option code. The user can select between two output signals (0 to 10 V or 4 to 20 mA). There is an optional digital display for the measured value. The standard unit has a button for re-zeroing; but there is also an auto-zeroing option that enable the device to re-zero itself every ten minutes to prevent zero point drift.
Kele Description
AIR DIFF PRESS XMTR, MULTI, +/-1.50%, 0-10.00" WC, 0-10 VDC, 4-20 MA, LCD, WALL
Manufacturer
Wika Instrument Corporation
Related Documents
A2G-50 Series Operating manual
