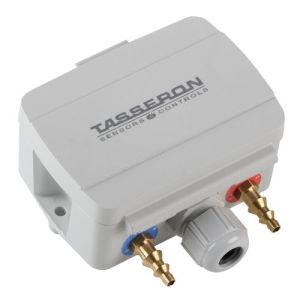

THPE0I0G | Tasseron Sensors | Pressure Components

DIFFERENTIAL PRESSURE EURO ±0.1" WC (±25PA) 4-20MA 3-WIRE

Brand:Tasseron Sensors

MPN:THPE0I0G

SKU:THPE0I0G

List Price:

$240.00

Today's Price:

$124.80

product datasheet

Lead time of 7 days. Chat with Kele experts now

product specifications

Direction

Bi-Directional

Output

4 - 20 mA

Display

Mount

Direct

product series specifications

Enclosure: Weatherproof NEMA 4X IP65, UV resistant injection-molded PCABS, UL94 V-0

Cover: Quick snap with hinges, injection-molded PCABS

Mounting: Direct screw or DIN rail clip

DIN Rail Mounting: 35 mm included or sold separately

Connection: AWG 22-16, 0.35 - 1.5mm spring-loaded Quick Connect wire terminals

Wiring: 3-wire

Cable Entry: Half inch NPT conduit thread, 1xM16 (5-10 mm cable)

Operating Range: -20-50C, -4-122F, 10 to 95% RH, non-condensing

Media Types: Intended for use with non-corrosive, non-ionic gases, such as air and other dry gases

Pressure Fitting Material: Brass

Tubing Size Accepted: 0.125in (3.175mm) to 0.250in (6.35 mm) I.D. Push-On Flexible Silicon Tubing

Supply Voltage (4-20mA): 24 VDC (250 Ohm Load max.) 24 VDC (500 Ohm Load max) 24VAC (10%) 50-60 Hz

Supply Voltage (0-10V): 16-36 VDC, 24 VAC (10%) 50-60 Hz

Supply Current mA: 4-20mA

Output: 23 mA minimum (0.83 VA), VDC

Output Signals: 5 mA maximum (0.18 VA)

Output Signals: 4-20mA 3-wire, 0-10VDC: 3-Wire

product series features

High accuracy piezoresistive, silicon sensing element
Offered in 12 selectable Uni or Bidirectional ranges
Field selectable analog outputs 0-10V or 4-20mA
2 selectable damping setting 3 sec or slow 20 sec
Auto-zero with onboard push button
Long term stability and low annual drift
AC or DC power supply accepted
Available with optional DIN mounting adapter
Quick Connect wire terminals for tool-free wiring
5 year limited warranty

more information & related documents

Series Description

The Tasseron Differential Low Pressure transmitters are designed for monitoring the differential pressure of air and other nonflammable and non-aggressive gases. Suitable applications include monitoring air filters, fans, industrial cooling air cycles, control of air and fire dampers. The Tasseron transmitter is housed in the NEMA 4X IP65 Euro enclosure. Key installation features include vertically orientated wiring and pressure connections, push button zero function, field selectable ranges and outputs and optional 35 mm DIN rail mounting adapter. The Tasseron Pressure Sensor utilizes a high accuracy, piezoresistive, silicon sensing element which senses differential pressure and provides a linear 4-20 mA current or 0-10V DC voltage output equal to the selected pressure range. This technology reduces warmup shift while also reducing the effect of package stress for increased long-term stability.

Kele Description

DIFFERENTIAL PRESSURE EURO ±0.1" WC (±25PA) 4-20MA 3-WIRE

Manufacturer

Tasseron Sensors
