629HLP-01-P2-S1 | Dwyer Instruments | Pressure Components

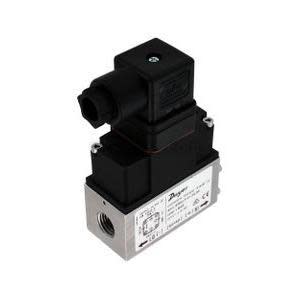

629HLP Differential Pressure Transmitter, 0-1 Bar, 1/4" Female NPT, 4-20 mA, (Mounting Bracket A-629HLP-BKT Required)
Brand:Dwyer Instruments
MPN:629HLP-01-P2-S1
SKU:629HLP-01-P2-S1
List Price:
$1,150.00
Today's Price:
$598.00
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
Bar
Media Compatibility
Liquid,Gas
Range
±100 psi
Type
Multi
Accuracy
1%
Output
4 - 20 mA
Enclosure Rating
IP65
Approvals
CE,RCM
Supply Voltage (Nominal)
24 VAC
Mount
Bracket
product series specifications
Service: Compatible gases or liquids
Wetted Material: 304 SS
Housing Material: ABS
Enclosure Rating: IP65
Accuracy: ±1% from -5 to 60°C (23 to 140°F)
Stability: ±1% FS/year
Temperature Limits: Ambient: -10 to 60°C (14 to 122°F); Process: -10 to 80°C (14 to 176°F)
Relative Humidity: 10% to 90% non-condensing
Installation Position: Not position sensitive
Output Signal: 4 to 20 mA, 0 to 10 VDC
Response Time: 50 ms
Rated Supply Voltage:
0 to 10 VDC Output: 12 to 36 VDC or 12 to 32 VAC (@ Max load of 2k Ω)
4 to 20mA output: 8 to 36 VDC
Max Loop resistance: (Supply Voltage – 8 V) / 0.02 for 4 to 20mA output
Power Consumption: Vout = 13 mA max, Iout = 24 mA max
Electrical Connections: Form A DIN 43650
Process Connections: 1/4" female NPT, 1/4" female BSPT
Weight: 1 lb 4 oz (567 g)
Approvals: CE, RCM
product series features
- Rugged, versatile, high accuracy device
- For liquid or gas systems requiring precise measurements
- Provide excellent response and reliability
- Suitable for static and dynamic measurements
- Converts pressure changes into 4 to 20 mA or 0 to 10 VDC output
- Compact, lightweight, capable to be installed in any arrangement making installation very simple
more information & related documents
Series Description
The Dwyer 629HLP Series differential pressure transmitter is suitable for measuring over-pressure, under-pressure, and differential pressure incompatible gases and liquids with 1% accuracy. The 629HLP Series is suitable for all measuring tasks in commercial, industrial or sanitary applications. Dual pressure sensors convert pressure changes into a standard 4 - 20 mA or 0 - 10 VDC output signal.
Kele Description
AIR DIFF PRESS XMTR, MULTI, +/-1.00%, 0-1 BAR, 4-20 MA, NO LCD, BRACKET
Manufacturer
Dwyer Instruments
629HLP Series Installation and Operating Instructions
