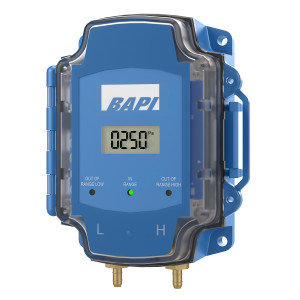

BA/ZPMB-LR-NT-D-BB | BAPI | Pressure Components

Power:
13 to 40 VDC (4 to 20 mA Output)
7 to 40 VDC or 18 to 28 VAC (0 to 5V Output)
13 to 40 VDC or 18 to 28 VAC (0 to 10V Output)

Power Consumption:
20 mA max, DC only at 4 to 20 mA Output
7 mA max DC at 0 to 5 or 0 to 10 VDC Output
0.58 VA max AC at 0 to 5 or 0 to 10 VDC Output

System Accuracy: ±1.0% FS, 32 to 104°F (0 to 40°C)

Accuracy Low Range: ±0.02” WC (±4.98 Pa)

Accuracy Standard Range: ±0.1” WC (±24.9 Pa)

Accuracy High Range: ±0.3” WC (±74.65 Pa)

Temp Hysteresis & Stability: ±1% FS per year

Field Selectable Outputs: 4 to 20 mA, 0 to 5 V, 0 to 10 V

Load Resistance:
4 to 20 mA Output: 550Ω Maximum @ 24 VDC
Voltage Output: 6KΩ Minimum

Overpressure:
Low Range: Proof 300” WC (74 kPa)
Standard Range: Proof 300” WC (74 kPa)
High Range: Proof 500” WC (124 kPa)

Compensated Temp. Range: 2 to 122°F (0 to 50°C)

Environmental Operating Range: Temp: -4 to 140°F (-20 to 60°C)

Humidity: 0 to 95% RH, non-condensing

Storage Temp: -40 to 185°F (-40 to 85°C)

Media: Clean, dry, non-corrosive gases
