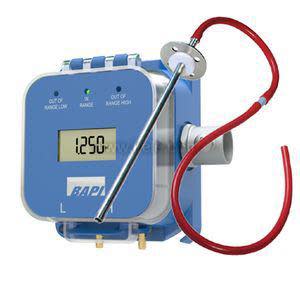

BA/ZPM-SR-ST-D | BAPI | Pressure Components

Power:

7 to 40 VDC (4 to 20 mA Output)

7 to 40 VDC or 18 to 32 VAC (0 to 5 or 1 to 5 VDC Output)

13 to 40 VDC or 18 to 32 VAC (0 to 10 or 2 to 10 VDC Output)

Power Consumption:

20 mA max, DC only at 4 to 20 mA Output

5.2 mA max DC at 0 to 5 or 0 to 10 VDC Output

0.12 VA max AC at 0 to 5 or 0 to 10 VDC Output

Load Resistance:

4 to 20 mA Output 850 Ω Maximum @ 24 VDC

0 to 5 or 0 to 10 VDC Output 6KΩ Minimum

Accuracy:

±0.25% FS at 72°F (22°C) for All Units

Low Range Unit: ±0.005" WC (±1.24 Pa)

Standard Range Unit: ±0.025" WC (±6.22 Pa)

High Range Unit: ±0.075" WC (±18.66 Pa)

Stability: ±0.25% FS per year

Overpressure:

Low Range: Proof 270" WC (67 kPa)

Standard Range: Proof 300" WC (74 kPa)

High Range: Proof 350" WC (87 kPa)

Media: Clean, dry, non-corrosive gases

Compensated Temperature Range: 32 to 122°F (0 to 50°C)

Environmental Operating Range: -4 to 140°F (-20 to 60°C)

Storage Temperature: -40 to 185°F (-40 to 85°C)

Humidity: 0 to 95% RH, non-condensing

Wiring: 2 wires (4 to 20mA Current loop), 3 wires (AC or DC powered, VDC output)

Port Size: 1/4" barb

Enclosure Material: UV-resistant Polycarbonate, UL94 V-0

Enclosure Rating: IP66, NEMA 4

Enclosure Dimensions: 5.49H x 4.11W x 2.5D” (139 x 104 x 64mm)

Agency: CE EN 61326-1:2013 EMC (Industrial Electromagnetic Environment), UL, RoHS
