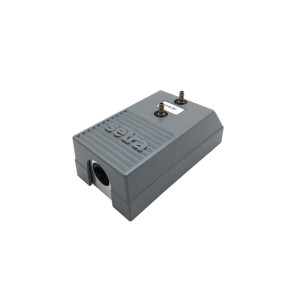

2641010WB2DA1F | Setra | Pressure Components
AIR DIFF PRESS XMTR, FIXED, +/-0.25%, +/-10.00" WC, 0-5 VDC, NO LCD, CONDUIT, CAL CERT
Brand:Setra
MPN:2641010WB2DA1F
SKU:2641010WB2DA1F
List Price:
$999.44
Today's Price:
$519.71
Log in for customized pricingproduct specifications
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Range
±10 in WC
Type
Fixed
Accuracy
0.25%
Output
0 - 5 VDC
Supply Voltage (Nominal)
24 VDC
Direction
Bi-Directional
product series specifications
Accuracy: ±0.25%, ±0.4%, ±1% FS
Hysteresis: 0.10% FS
Maximum Line Pressure: 10 PSI
Long Term Stability: 0.5% FS/YR
Operating Temperature: 0 to 175 ºF
Storage Temperature: -65 to 250 ºF
Output (Voltage): 9 to 30 VDC / 0 to 5 VDC
Output (Current): 4 to 20 mA
product series features
- Industry standard for very low differential pressure
- Up to 10 PSI overpressure (range dependent)
- Installation time minimized w/ mounting options
- Reverse wiring protection
- Internal regulation permits use with unregulated DC power supplies
- Fire retardant case (UL 94 V-0 approved)
more information & related documents
Series Description
With millions of sensors installed world wide, Setra’s 264 is the “standard” for low differential pressure measurement in HVAC building automation. The 264 very low differential pressure transducer uses a dead-ended stainless steel welded capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability in critical installations. The 264 has a 3 year, unconditional warranty, giving the end-user peace of mind well beyond the initial commissioning phase and guarantees performance well after the BAS warranty. The 264 utilizes a robust design that offers brass barbed fittings, and an optional conduit cover for easy and consistent installation.
Kele Description
AIR DIFF PRESS XMTR, FIXED, +/-0.25%, +/-10.00" WC, 0-5 VDC, NO LCD, CONDUIT
Manufacturer
Setra
Related Documents
Model 264 Installation Guide and Manual
