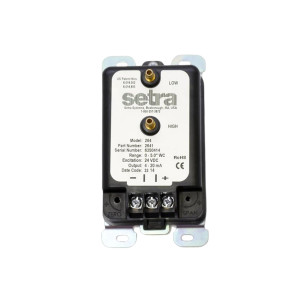

2641005WD11T1C | Setra | Pressure Components
AIR DIFF PRESS XMTR, FIXED, +/-1.00%, 0-5.00" WC, 4-20MA, NO LCD, TERMINAL STRIP
Brand:Setra
MPN:2641005WD11T1C
SKU:2641005WD11T1C
List Price:
$621.00
Today's Price:
$322.92
Log in for customized pricingproduct specifications
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Range
±5 in WC
Type
Fixed
Accuracy
1%
Output
0 - 5 VDC
Supply Voltage (Nominal)
24 VDC
Direction
Uni-Directional
Mount
Wall
product series specifications
Accuracy: ±0.25%, ±0.4%, ±1% FS
Hysteresis: 0.10% FS
Maximum Line Pressure: 10 PSI
Long Term Stability: 0.5% FS/YR
Operating Temperature: 0 to 175 ºF
Storage Temperature: -65 to 250 ºF
Output (Voltage): 9 to 30 VDC / 0 to 5 VDC
Output (Current): 4 to 20 mA
product series features
- Industry standard for very low differential pressure
- Up to 10 PSI overpressure (range dependent)
- Installation time minimized w/ mounting options
- Reverse wiring protection
- Internal regulation permits use with unregulated DC power supplies
- Fire retardant case (UL 94 V-0 approved)
more information & related documents
Series Description
The 264 very low differential pressure transducer uses a dead-ended stainless steel welded capacitive sensing element that requires minimal amplification and delivers excellent accuracy and long-term stability in critical installations.
Kele Description
AIR DIFF PRESS XMTR, FIXED, +/-1.00%, 0-5.00" WC, 4-20MA, NO LCD, TERMINAL STRIP
Manufacturer
Setra
Related Documents
datasheet_1009_2641005wd11t1cke1
