2641-001WD-11-A1-C

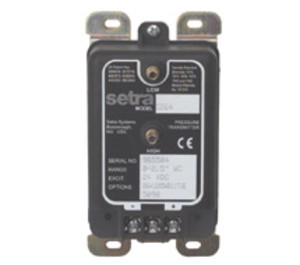

* product family image displayed

2641-001WD-11-A1-C | Setra | Pressure

FIXED DP XMITTER 0-1.0, 4-20MA

Manufacturer:Setra

MPN:2641-001WD-11-A1-C

SKU:2641-001WD-11-A1-C

List Price:

546.00

Today's Price:

305.76



USD
Availability: Usually Ships in Less Than 4 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

9 to 30V DC

Accuracy

± 1% Full scale

Signal Output

0-5V @ 5KΩ, 4-20mA @ 750Ω (loop powered)

Sensor Type

Capacitive

Adjustments

(Z/S) Zero & Span trim POTs

Normal Measurement Range

(0 to 100″WC) or ±(0.1 to 25″WC)

Display

Overpressure

(Burst) ±10 psid (68.95 kPa)

Max Operating Pressure

(Proof) -25"WC to +100"WC

Operating Temperature

0 to 175℉(-18 to 79℃)

Operating Humidity

10 to 95% Non-condensing

Wetted Parts

Stainless steel

Media Compatibility Inert

dry air

Process Connection

3/16″ OD brass, for 1/4″ OD tubing

Wiring Exposed terminals

2-(4-20mA), 3-(Volts)

Mounting

2 or 4, #10 screws

Enclosure Rating

NEMA1 equivalent, plastic UL94-V-0

Dimensions

5.06″W x 2.75″H x 2.38″D, (12.9 x 7 x 6 cm)

Weight

0.55 lb (0.25 Kg)

Approvals

CE

Warranty

3 years

product family features

  • 4-20 mA output signal
  • Voltage output signal optional
  • 10 psig (68.70 kPa) overpressure
  • Three-year unconditional warranty
  • 1% accuracy standard, 0.4% and 0.25% NIST certification optional
  • Reverse wiring protected
  • Stainless steel diaphragm
  • Ideal for air and non-conducting gases

more information & related documents

Family Description

The Setra Model 264 Differential Pressure Transmitter is a low-air pressure transmitter able to sense differential pressure in both negative and positive ranges. The Model 264 incorporates a tensioned stainless steel diaphragm to form a variable capacitor that will produce variation in the output signal. The Model 264's durable design will tolerate an overpressure of 10 psig (68.95 kPa) and has an unconditional three-year warranty.. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

FIXED DP XMITTER 0-1.0, 4-20MA

Manufacturer

Setra
