DPL-1-1 | Kele | Pressure Components

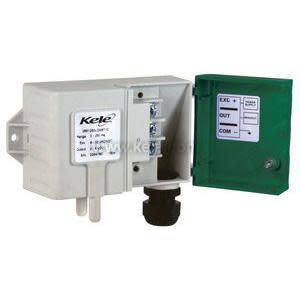

Air Differential Pressure Transmitter, Fixed, ±1.00%, 0-0.25" WC, 0-10 VDC, No LCD, Wall

Brand:Kele

MPN:DPL-1-1

SKU:DPL-1-1

List Price:

$416.00

Today's Price:

$216.32

installation instructions

catalog page

Lead time of 15 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

Inches of Water Column

Media Compatibility

Air

Range

±1 in WC

Type

Fixed

Accuracy

Output

0 - 10 VDC

Supply Voltage (Nominal)

24 VDC

Mount

Wall

product series specifications

Supply Voltage: 4-20 mA model – 9 to 30 VDC, 0 to 5 and 0 to 10 model – 9 to 30 VAC/VDC

Current Output: 9 to 30 VDC @ 20 mA

Voltage Output: 9 to 30 VAC @ 0.6 VA; 9 to 30VDC @ 25 mA

Accuracy: ± 1% Full scale

Signal Output: 0-5V @ 5KΩ, 0-10V @ 5KΩ, 4-20 mA @ 750Ω (loop powered)

Sensor Type: Capacitive

Adjustments: (Z/S) Zero and Span trim POTs

Normal Measurement Range: 0 to 100″WC, Uni- or Bi- Directional

Overpressure: (Burst) ±10 psid (68.95 kPa)

Max Operating Pressure: (Proof) -50″WC to +100″WC

Operating Temperature: 0 to 150℉ (-18 to 65°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: Stainless Steel

Media Compatibility: Inert dry air

Process Connection: 3/16″ OD plastic, for 1/4″ OD tubing

Wiring: 1/2″ gland, Terminals- 2 used-(4-20mA), 3-(Volts)

Mounting: 2 screws

Enclosure Rating: NEMA1 equivalent

Dimensions: 3.95″W x 3.49″H x 1.55″D, (10 x 8.9 x 3.9 cm)

Weight: 0.3 lb (0.14 Kg)

Approvals: CE

Warranty: 1 year

product series features

10 psig overpressure
±1% full scale accuracy
Reverse wiring protection
4-20 mA, 0-5 or 0-10 VDC output
Zero and span adjustment
Bidirectional ranges available

more information & related documents

Series Description

The Kele DPL Series Low Differential Pressure Transmitters offer reliable pressure measurements as low as ±0.10 w.c. (±25 Pa) with an exceptional 1% full scale accuracy. The rugged capacitance sensor can withstand up to 10 psig over pressure without damaging the unit. The transmitters feature reverse wiring protection and easily accessible zero and span pots. The DPL Series are designed for energy management systems, environmental pollution control, HVAC, and building automation applications.

Kele Description

AIR DIFF PRESS XMTR, FIXED, +/-1.00 %, 0-0.25" WC,

Manufacturer

Kele
