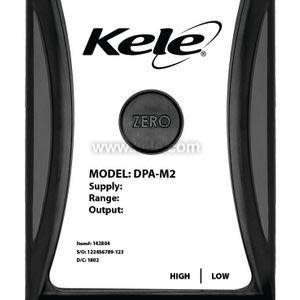

Rectangular white front panel labeled Model DPA-M2 with a round zero button and high/low indicators.

DPAM2-1D0-B-5-N | Kele | Pressure Components

DPAM2 Air Differential Pressure Transmitter, ±0.50%, 1.00" WC, Bi-Directional (+/-), 0-5 VDC, No NIST Certification

Brand:Kele

MPN:DPAM2-1D0-B-5-N

SKU:DPAM21D0B5N

List Price:

$-.--

Today's Price:

$-.--

installation instructions

catalog page

product specifications

Direction

Bi-Directional

Measurement

Inches of Water Column

Media Compatibility

Liquid,Gas

Range

±1 in WC

Type

Fixed

Accuracy

0.5%

Output

0 - 5 VDC

Mount

DIN rail

product series specifications

Supply Voltage: 12-36 VDC, 5mA max

Voltage Output:

0-5 VDC Output: 16-36 VDC, 5mA max

0-10 VDC Output: 16-36 VDC, 5mA max

4-20 mA Output: 16-36 VDC, 20.5mA max

Current Output:

4-20 mA Output: 3-Wire, 23 mA minimum (0.83 VA)

VDC Output Signals: 3-Wire, 5 mA maximum (0.18 VA)

Accuracy: ± 0.5% Full scale

Signal Output:

4-20 mA: 2-Wire Loop Powered (500Ω @ 24 VDC)

4-20 mA: 3-Wire, VAC Powered (500Ω @ 24 VDC)

0-5 VDC:

0-10 VDC: 3-Wire, AC or DC, 5.25 VDC max, 10.25 VDC max)

Sensor Type: Piezoresistive

Adjustments: Pushbutton Zero Function (Recommended after 15 minutes warm up)

Normal Measurement Range: 0.10 to 40 psi, Uni-Directional or Bi-Directional

Wetted Parts: Silicone

Media Compatibility: Dry air or inert non-conductive gases

Proof Pressure and Overpressure:

Ranges: 1 psi (248.84 pa)

Proof: 270 psi (67.2 kPa), Burst: 415 psi (103.3 kPa)

Ranges: 1-10 psi (0.24 to 2.4 kPa)

Proof: 350 psi (87.12 kPa), Burst: 550 psi (136.9 kPa)

Ranges: 10 psi (2.488 kPa)

Proof: 562 psi (140 kPa), Burst: 1004.7 psi (250 kPa)

Operating Temperature: 32° to 185°F (0° to 85°C)

Operating Humidity: 10 to 95% RH, non-condensing

Process Connection: 1/4" O.D. brass barb

Wiring: 3 Position de-pluggable terminal 14 AWG to 24 AWG

Mounting: DIN Rail 35 mm

Enclosure Rating: ABS flame retardant UL94-V0, NEMA1 equivalent

Dimensions: 4.210"H x 2.085"D x 1.340"W (106.94 x 52.96 x 34.04 mm)

Weight: 0.17 lb (0.078 Kg)

Approvals: CE, RoHS, REACH, WEEE

Warranty: 5 year

product series features

Integral 35 mm DIN Rrail mounting foot
Vertically orientated wiring and pressure connections
Pushbutton zero function located on the front cover
High accuracy, piezoresistive, silicon sensing element
De-pluggable terminal block
Small size
Five-year warranty

more information & related documents

Series Description

The Kele DPAM2 low differential pressure transmitter series is designed for use in OEM or high density DIN rail panel mounting applications. Key installation features include an integral 35 mm DIN rail mounting foot, vertically orientated wiring 1/4 in brass barb pressure connections, and a pushbutton zero function conveniently located on the front cover. The DPAM2 incorporates a high accuracy, piezoresistive, silicon sensing element which senses differential pressure and provides a linear 4 to 20 mA or 0-5V/0-10V voltage output equal to the specifc pressure range. In addition, the unit contains a de-pluggable terminal block that can be removed for east of installation. This unit must be ordered with a single uni or bi-directional pressure range and output signal from ±0.1 in of water column to a maximum pressure of ±40 in of water column depending on your application. All DPAM2 series pressure transmitters are calibrated using NIST Certified equipment. Optional 3 or 5 point NIST certificates are available and must be specified when placing your order.
