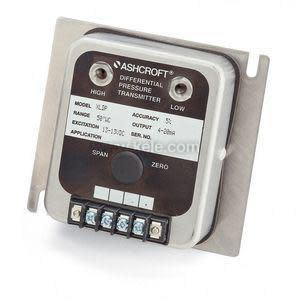

White differential pressure device with two ports and terminal strip

XL3MB242ST5IW | Ashcroft, Inc | Pressure Components

XLdp Series, ±0.25% of span, ±0.015% of span T.C. /°F, 1/4" Barbed Male, 4-20 mA, Screw Terminal, 0-5.00" WC

Brand:Ashcroft, Inc

MPN:XL3MB242ST5IW

SKU:XL3MB242ST5IW

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

catalog page

product specifications

Direction

Uni-Directional

Measurement

Inches of Water Column

Media Compatibility

Liquid,Gas

Range

±5 in WC

Type

Fixed

Accuracy

0.25%

Output

4 - 20 mA

Supply Voltage (Nominal)

24 VDC

Mount

Wall

product series specifications

Supply Voltage: 12 to 36 VDC @ 21.5 mA

Current Output: 12 to 36 VDC @ 6 mA

Accuracy: ±0.5% or ±0.25% Full scale (NIST included)

Signal Output: 1-5V @ 10KΩ, 4-20mA @ 545Ω (loop powered)

Sensor Type: Capacitive

Adjustments: (Z/S) Zero ±10% & Span ±10% trim POTs

Normal Measurement Range: 0 to 10¼" WC, Uni- or Bi- Directional

Overpressure: (Burst) ±25 psid (172.4 kPa)

Max Operating Pressure: (Proof) ±15psid, (±103 kPa)

Operating Temperature: 35 to 135°F (2 to 57°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: Silicone

Media Compatibility Inert: dry air

Process Connection: 3/16" OD brass, for ¼" OD tubing

Wiring: 5 Exposed terminals 2-(4-20mA), 3-(Volts)

Mounting: 2, #10 screws (horizontal position)

Enclosure Rating: Stainless steel, NEMA 2

Dimensions: 4.2"W x 4.6"H x 1.9"D, (10.7 x 11.7 x 4.8 cm)

Weight: 0.9 lb (0.4 Kg)

Approvals: CE

Warranty: 3 year

product series features

Reliable, stable capacitive sensor
Low-range models down to ±0.05 in W.C.
Positive or bidirectional ranges available
Reverse polarity protected
High proof pressure
Includes NIST certificate

more information & related documents

Series Description

The Ashcroft XLdp Series Differential Pressure Transmitters are an industrial-quality, differential air pressure transmitter for use with air and other noncorrossive gases. The XLdp models are available in ranges from 0.1 in to 25 in W.C. and can withstand up to 10 psid overpressure. They are highly accurate and available in accuracies of 0.25% and 0.50%.

Kele Description

AIR DIFF PRESS XMTR, FIXED, +/-0.25%, 0-5.00" WC, 4-20 MA, NO LCD, WALL

Manufacturer

Ashcroft, Inc
