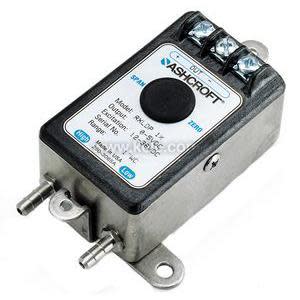

RXLdp Ultra-Low Air Differential Pressure Transmitter, 1.00% Accuracy, ±0.25%/°F, 1/4" Barbed Male, 4-20 mA, Electric Terminal, 0-0.25" WC
Brand:Ashcroft, Inc
MPN:RX7MB242STP25IW
SKU:RX7MB242STP25IW
product specifications
Measurement
Inches of Water Column
Media Compatibility
Liquid,Gas
Range
±1 in WC
Type
Fixed
Accuracy
1%
Output
4 - 20 mA
Supply Voltage (Nominal)
24 VDC
Direction
Uni-Directional
Mount
Wall
product series specifications
Supply Voltage: 12-36 VDC
Supply Current: <6 mA for voltage output
Signal Output: 4-20 mA @ 545Ω, 1-5 VDC, 0-10V
4-20 mA @ 545Ω, 1-5 VDC, 0-10V, CXL: 0-10 V
Maximum Output:
Impedance: RXLdp: 545Ω @ 24 VDC (up to 1045Ω @ 36 VDC),
CXLdp: 545Ω @ 24 VDC (up to 1091Ω @ 36 VDC)
Accuracy: 1%
Stability: ±0.5% FS/yr
Operating Temperature: 0° to 160°F (-18° to 71°C)
Compensated Temperature:
Range: RXLdp: 40° to 125°F (4° to 52°C), CXLdp: 35° to 130°F (2° to 54°C)
Proof Pressure: 10 psid (69 kPa)
Burst Pressure: 25 psid
Response Time: 250 ms
Media Compatibility: Air and non-corrosive gases
Dimensions:
RXLdp: 2.8"W x 3.8"H x 1.6"D (7.0 x 9.7 x 4.1 cm)
CXLdp: 1.9"W x 3.3"H x 1.3"D (4.8 x 8.5 x 3.3 cm)
Weight: 0.28 lb (0.13 Kg)
Approvals: CE
Warranty: 1 year
product series features
- Reliable, stable capacitive sensor
- Reverse polarity protected
- High proof pressure
- DIN rail mount CXLdp models
- Power LED on CXLdp models
more information & related documents
Series Description
The CXLDP Series differential pressure transmitters are designed for use with air and other non-corrosive gases. The CXLDP Series feature an accuracy of 0.4% or 0.08% and can be DIN rail mounted.
Kele Description
AIR DIFF PRESS XMTR, FIXED, +/-1.00%, 0-0.25" WC, 4-20 MA, NO LCD, WALL
Manufacturer
Ashcroft, Inc
Related Documents
cxldp datasheet
