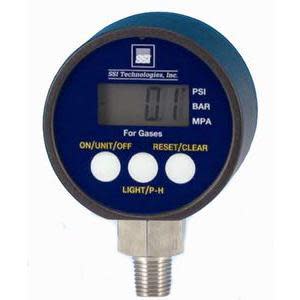

A round digital pressure gauge with a blue front, a small LCD screen displaying numbers, and three white control buttons.

MG-2000-A-MD | SSI | Pressure Components

Digital Pressure Gauge, 0-2000 psi, 1/4" NPT, 4-Pin Mini Din, 4-20 mA & 2 Programmable Set Points

Brand:SSI

MPN:MG-2000-A-MD

SKU:MG-2000-A-MD-R

List Price:

$603.00

Today's Price:

$313.56

product datasheet

installation instructions

catalog page

Lead time of 12 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

PSI

Media Compatibility

Liquid,Gas

Range

±2,000 psi

Connection Size

1/4 in

Type

Digital

Connection

NPT

Accuracy

0.25%

Output

4 - 20 mA

Display

LCD

Enclosure Rating

NEMA 4X

Dial Size

3.00 in

Filling

Dry

Supply Voltage (Nominal)

24 VDC

Mount

Lower Back

product series specifications

Supply Voltage: 12 VDC

Accuracy: ±0.25% F.S.

Pressure Range: 5, 15, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000 PSI

Media Isolation: 316L SS diaphragm

Chemical Compatibility: Any gas or liquid chemically compatible to 304L SS and 316L SS

Port: 304L SS port

22mm 1/4 - 18: NPT

22mm 1/8 - 27: NPT

Operating Temperature: 14° to 140‚°F (-10° to 60°C)

Automatic Shutoff Time: N/A

Output Type: 4 digit LCD, 4-20 mA current output, and a NPN limit switch

Keypad Operated Functions: Multiple pressure units (PSI, BAR, MPA); peak hold; zero adjustment, high and low pressure set points

Package: 3" with black ABS thermoplastic case. NEMA 4X rating

Enclosure Rating: NIST Calibration Certification; protective rubber boot; ft of head ranges available

Typical Applications: Process control, refrigeration, fuel cells, pumps, hydraulics, pneumatics, compressors, waste water, agriculture

Warranty: 1 year

product series features

Low cost
High accuracy at 0.25% F.S.
Back light
Peak hold for max pressure indication

more information & related documents

Series Description

The SSI Technologies MediaGauge™ MG-MD is a multi-functional digital pressure 4-20 mA transmitter using a 316L stainless steel pressure port diaphram. The MG-MD digital pressure transmitter has an accuracy of ±0.25% full scale for 75 to 3000 psi with an LCD back lit display. The MediaGauge™ MG-MD digital pressure gauge is a powered by an external 8-30 VDC external power supply and comes standard with a wide variety of functions - multiple pressure unit display readings (PSI, BAR, or MPA units); memory storage of maximum peak pressure reading zero adjustment; a 4-20 mA current output along with a limit switch (NPN transistor) to interface to monitoring and control systems.

Kele Description

DIAL GAUGE, DIGITAL, +/-0.25%, 0-2000 PSI, 3.00" DIAL, 1/4" NPT, DRY, WET, LOWER MOUNT

Manufacturer

SSI
