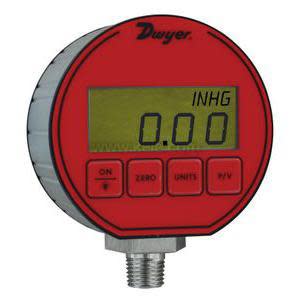

DPG-002 | Dwyer Instruments | Pressure Components
Digital Pressure Gage, Selectable Engineering Units: 15.00 psi, 1.055 kg/cm², 1.034 Bar, 30.54" Hg, 34.61 Ft WC, 103.4 kPa, 240 Oz/In², 415.2" WC, 1034 Mbar, 1055 cm WC, 775.7 mm Hg
Brand:Dwyer Instruments
MPN:DPG-002
SKU:DPG-002
List Price:
$830.00
Today's Price:
$431.60
Log in for customized pricingproduct specifications
Direction
Uni-Directional
Measurement
PSI
Media Compatibility
Liquid,Gas
Range
±50 psi
Connection Size
1/4 in
Type
Digital
Connection
NPT
Accuracy
0.5%
Display
LCD
Enclosure Rating
NEMA 4X
Dial Size
3.00 in
Filling
Dry,Wet
Mount
Lower Back
product series specifications
Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below)
Wetted Materials: Type 316L SS
Housing Materials: Polycarbonate front & back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction
Accuracy: DPG-000: ±0.5% FS; DPG- 100: 0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity, hysteresis, repeatability)
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range
Enclosure Rating: Designed to meet NEMA 4/4X (IP66)
Temperature Limits: 0 to 130°F (-18 to 55°C)
Thermal Effect: Between 70 to 130°F is 0.016%/F; Between 32 to 70°F is 0.026%/F; Between 10 to 32°F is 0.09%/F
Size: 3.00" OD x 1.90" deep (max)
Process Connection: 1/4" male NPT
Weight: 8.84 oz (275 g)
Display: 4 digit (.425"H x .234"W digits)
Power Requirements: (2) AAA alkaline batteries, included, user replaceable
Battery Life: 2000 hours typical; Low battery indicator (60 hours in continuous use)
Auto Shut-Off: Gage: 60 minute auto shut off. Auto shut-off may be disengaged; Backlight: 2 minute auto shut-off
Agency Approvals:
DPG-000: CE
DPG-100: CE, FM approved to be intrinsically safe for Class I, Division I, Groups A, B, C and D, for ranges 0-15 to 0-3000 psi
product series features
- High accuracy provides exceptional measurement minimizing costly out of specification conditions
- Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
- Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
- Push-button zero reduce installation and service time
more information & related documents
Series Description
The Dwyer DPG Series Digital Pressure Gages has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.
Kele Description
DIAL GAUGE, DIGITAL, +/-0.50%, 0-15 PSI, 3.00" DIA
Manufacturer
Dwyer Instruments
Related Documents
DPG Series Data Sheet
