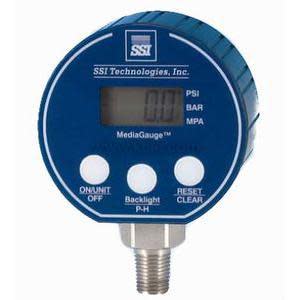

MG-300-A-9V | SSI | Pressure Components

Supply Voltage (If Used): 9 Volt Battery

Readout (Analog, digital etc.): 4 digit LCD back-lit display; 5 minute time out

Dial (white, mirrored, LCD, LED, Stop pins Etc.): 2.5" diameter with 3/8" digit height

Window Material (Glass, Polycarbonate etc.): Clear plastic

Indication Scale : Field selectable (PSI, BAR, MPA)

Accuracy: ±0.25% >75psig, ±0.5% >15 psig, Full scale

Calibration (adjustable, Fixed, Etc.): Manual Zero button

Button Controls: Three wipe down buttons

Dial Fill Fluid: On/Unit/Off Controls ON/Off and unit selection, Light/P-H Controls backlight and max hold display, Reset/Clear Resets max hold value and zeros gauge

Sensor principle (Balanced, Bourdon tube, Capacitive): Piezoresistive

Operating Pressure Ranges: 15-1,000 PSI (See ordering)

Overpressure (Burst): 10 x Full scale

Max Operating Pressure (Proof): 3 x Full scale

Operating Temperature: 14° to 140°F (-10° to 60°C)

Operating Humidity: 0 to 95% Non-condensing

Wetted Parts: 316 Stainless Steel (SS) diaphragm

Media Compatibility: Gas or Liquid compatible w/ 316 SS

Process Connection: ¼" MNPT

Mounting: By process connection

Wiring Terminations (if needed): None required

Enclosure Case Rating: ABS thermoplastic

Enclosure Rating: NEMA 4X

Dimensions : 2.5"W x 3.69"L x 1.81"D (6.4 x 9.3 x 4.5cm)

Weight: 1lb. (.45kg)

Approvals: None required

Warranty: 1 Year
